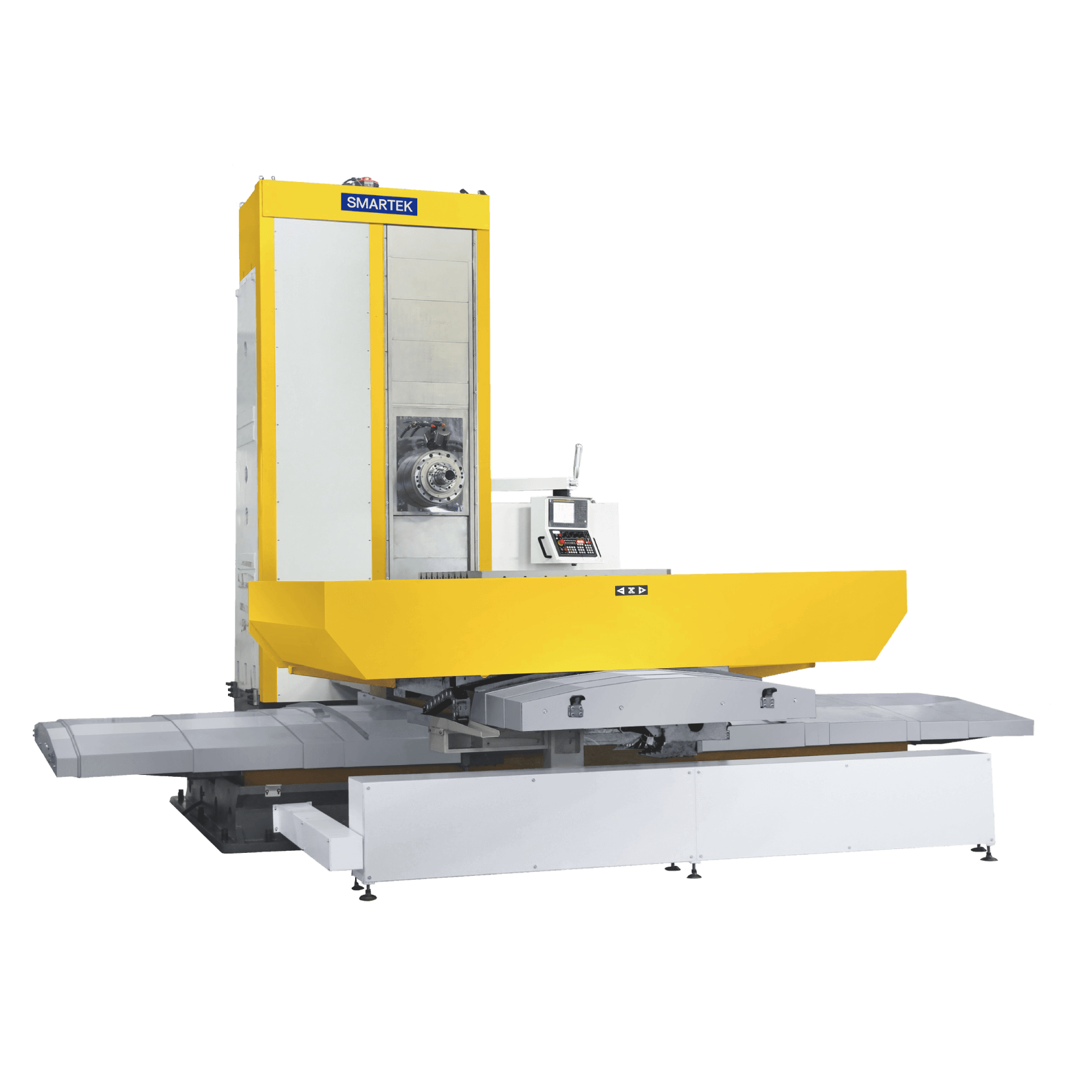

Maximum Load-bearing Table
{"json":"[{\"index\":\"0\",\"tran_label\":\"Model NO.\",\"tran_value\":[\"STM-1210S\"]},{\"index\":\"1\",\"tran_label\":\"Worktable Size\",\"tran_value\":[\"6mm*180mm\"]},{\"index\":\"2\",\"tran_label\":\"Maximum Load-bearing Table\",\"tran_value\":[\"2000kg\"]},{\"index\":\"3\",\"tran_label\":\"Spindle Diameter\",\"tran_value\":[\"∅110mm\"]},{\"index\":\"4\",\"tran_label\":\"Transport Package\",\"tran_value\":[\"Wooden Pallet\"]},{\"index\":\"5\",\"tran_label\":\"Trademark\",\"tran_value\":[\"SMART\"]},{\"index\":\"6\",\"tran_label\":\"Numerical Control\",\"tran_value\":[\"CNC\"]},{\"index\":\"7\",\"tran_label\":\"Maximum Spindle Speed\",\"tran_value\":[\"2000rpm\"]},{\"index\":\"8\",\"tran_label\":\"Control System\",\"tran_value\":[\"SIEMENS 828D\"]},{\"index\":\"9\",\"tran_label\":\"Specification\",\"tran_value\":[\"3500mm*3000mm*3000mm\"]},{\"index\":\"10\",\"tran_label\":\"Machine Weight\",\"tran_value\":[\"30T\"]},{\"index\":\"11\",\"tran_label\":\"Origin\",\"tran_value\":[\"China\"]}]","type":"2"}
Worktable
Servo Workbench Size
mm
630*630
Maximun Load of Workbench
kg
2000
T-shaped Groove of Workbench
mm
130*5
Minimun Segmentation Angle of Servo Rotating Workbench mm
±0.006
Maximum Rotation Diameter mm 1600 Trip
Left and Right Travel of Workbench (X-axis) mm
1200
Up-down Stroke of the Column(Y-axis) (Hard Rail)
mm
1100
Front and Rear Travel of Workbench (Z-axis)
mm
1000
Spindle Retraction Stroke (W-axis)
mm
500(Optional)
Main Shaft
Spindle Output Horsepower
(continuous/30 minutes)
KW
18.5/22
Maximum Torque of the Spindle
N.m
220
Spindle Diameter
mm
Φ110
Spindle Speed
rpm
2000
Spindle Hole Taper
-
BT-50
Spindle Lubrication Method
-
Grease lubrication
Feed System
X/Y/Z axis Rapid Feed
m/min
6/7/6
W-axis Rapid Feed
m/min
4
Maximum Speed of Workbench rpm
3
Cutting Fluid System Cutting Fluid Water Tank Capacity L 500 Cutting Fluid Pump Motor Power kw 1.35 Oil Pressure System Power Hp 3 Tool Magazine System ATC Tool Maximum Diameter
(Adjacent/Non Adjacent)
mm Φ120/250 Maximum Weight of ATC Tool kg 25 ATC Tool Change Time sec 14 ATC Tool Support Force kg 60±5 Installtion Requirements
Total Power Capacity KVA
35
Minimum Pressure of Air Compressor kg/cm2
6
Machine Dimensions(Semi Protective)
mm 3500*3000*3000 Machine Weight Approximately T 12
