China Best-in-Class CNC Horizontal Boring Milling Machining Center Manufacturer

Yaogong Intelligent Equipment from casting to assembly has accumulated nearly 20 years of technology and experience, specializing in the design, manufacturing, sales and service of CNC Boring & Milling Machining Center, Horizontal Machining Center, manufacturing lots of high quality Horizontal Boring Machining Center, Horizontal Machining Center, Machine Accessories are used in well-known brands, with advanced technology, excellent quality to create the most cost-effective CNC Machining Center in the world.

Our machining accuracy and stability of the machine tool are well received by customers. lf you are looking for CNC Boring & Milling Machining Center, you are on the right place.

INQUIRY NOW

ALL PRODUCTS

China Best-in-Class CNC Horizontal Boring Milling Machining Center Manufacturer

CNC Boring & Milling Machining Center Processing Video

CNC Boring Milling Machine Make Workpiece Fine and Smoother Internal Wall
CNC Boring Milling Machines High Precision in Drilling

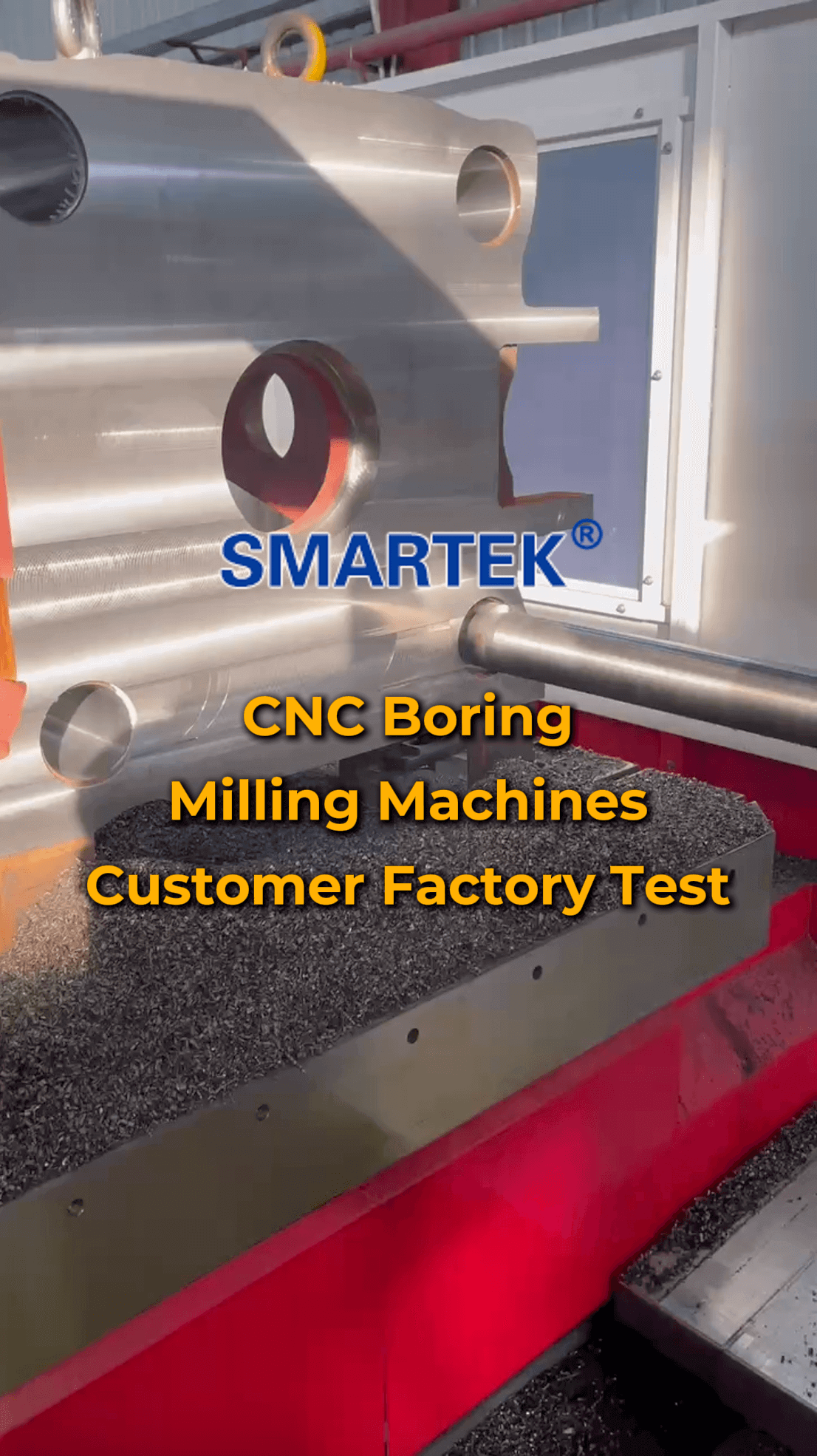

CNC Boring Milling Machines Customer Factory Test

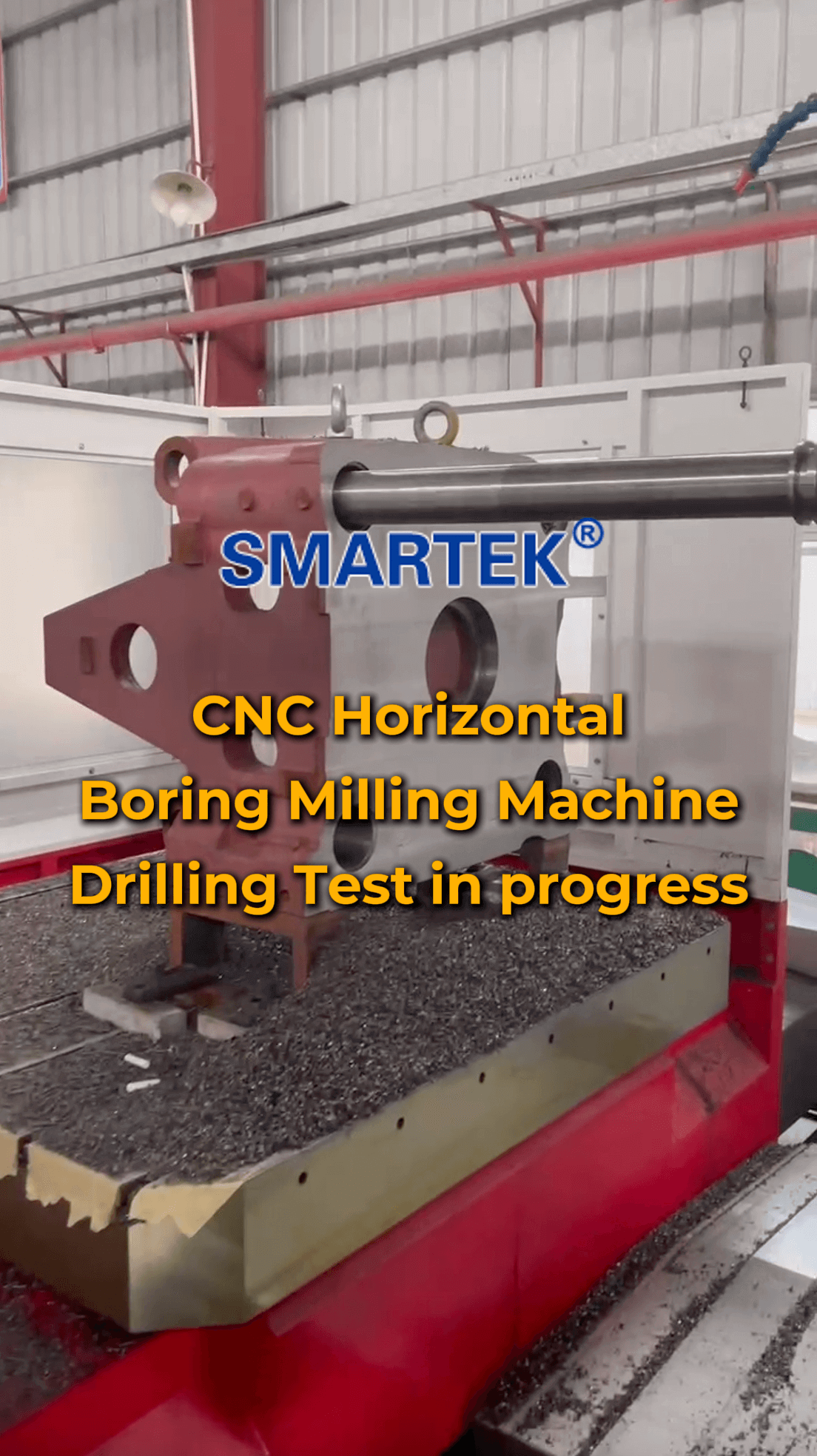

CNC Horizontal Boring Milling Machine Drilling Test in progress

HOT PRODUCTS

Yaogong Intelligent Equipment Products own best-in-class CNC machining systems, can meet the highest demands on CNC machining manufacturing while fitting into virtualy every budget.

View More Products

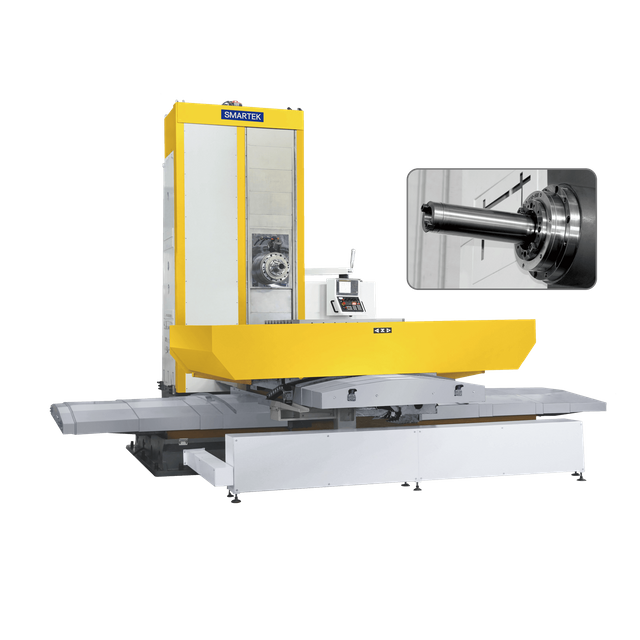

CNC Moving Column Type Boring Milling Acceptable Customization 2500RPM Spindle Speed Machining Center

View detail

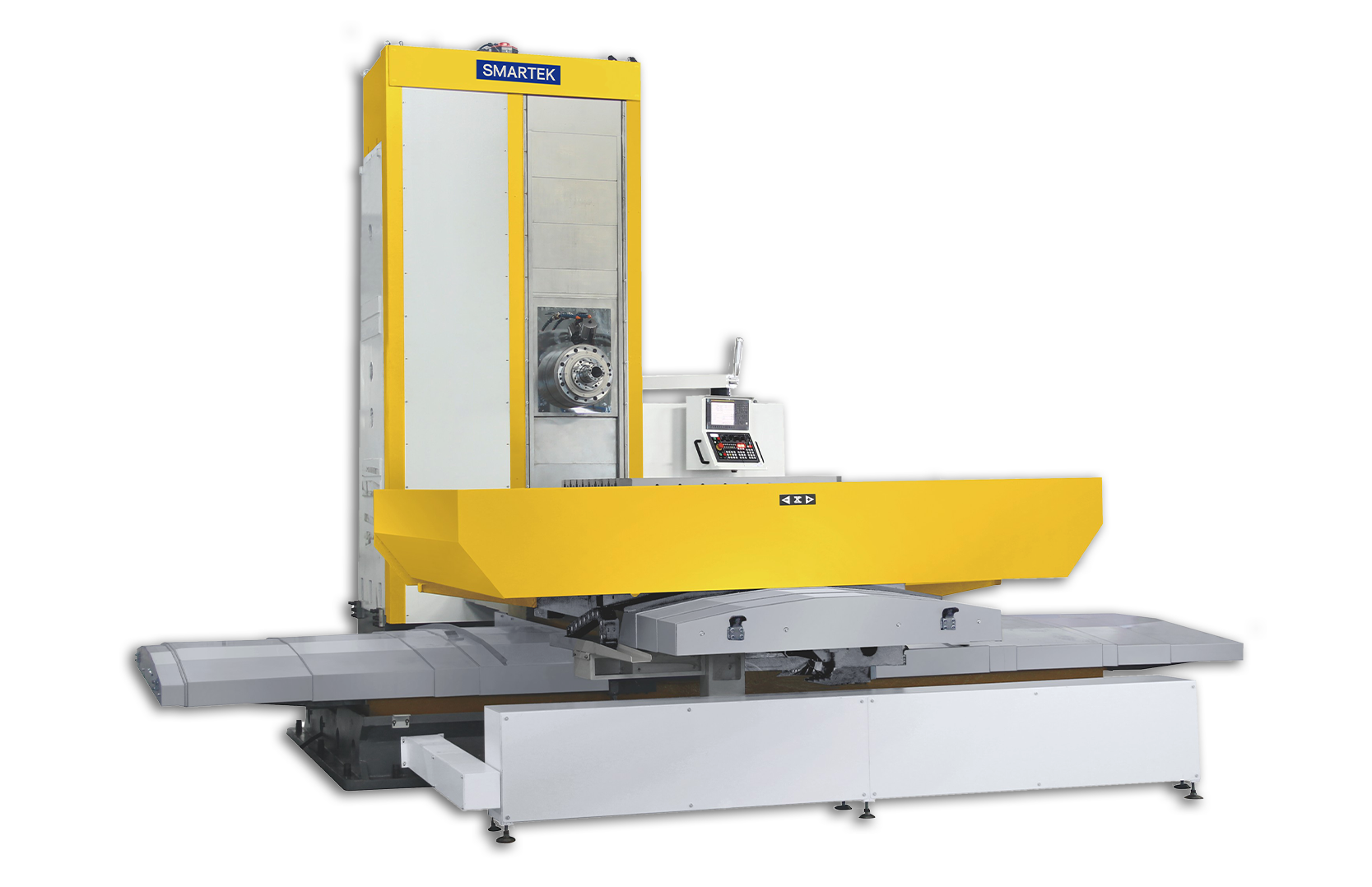

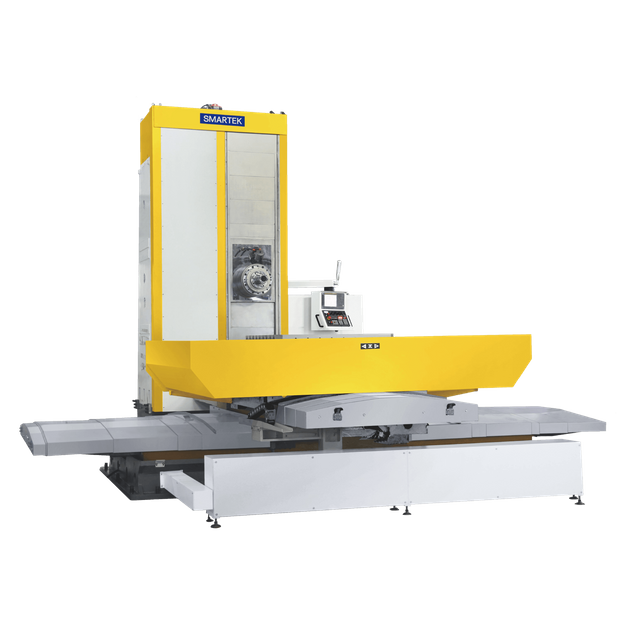

High Precision High Rigidity CNC Fixed Column Type Boring Milling Machining Center

View detail

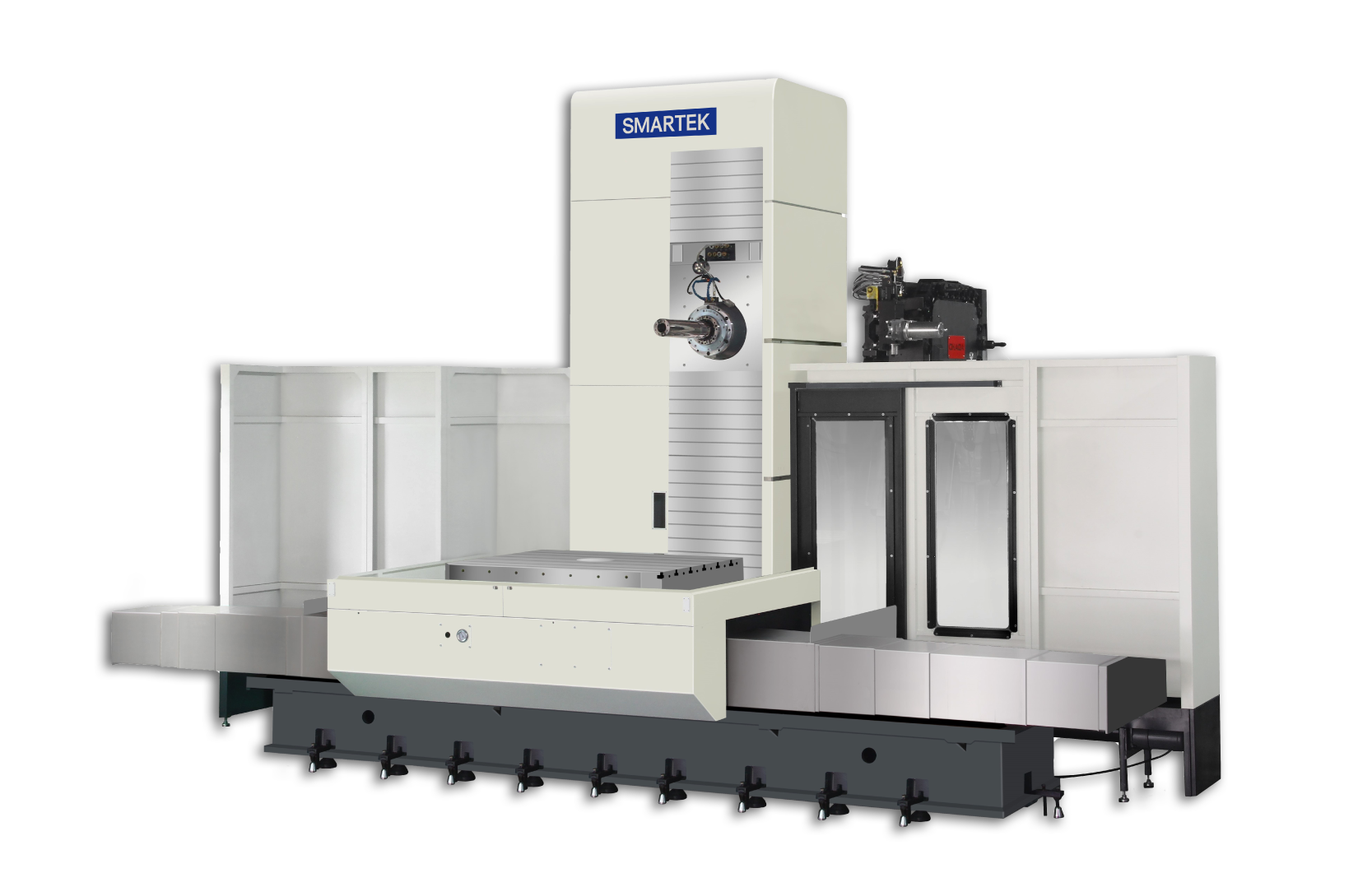

CNC Horizontal Machining Vertical Boring Milling Machine Center

View detail

CNC Vertical And Horizontal Moving Column Boring Milling Machining Center Customization

View detail

CNC Vertical Horizontal Boring And Milling Machining Center Customization

View detail

Vertical And Horizontal Machining CNC Boring Milling Machine Center

View detail

High Speed Innovation 5 Axis Machining CNC Horizontal Milling Machine And Machining Center

View detail

5 Axis CNC High Speed Horizontal Milling Machine And Machining Center

View detail

CNC Horizontal High Speed Innovation 5 Axis Machining Milling Machine And Machining Center

View detail

CNC High Speed 5 Axis Horizontal Milling Machine And Machining Center

View detail

Custom 5-Axis High Precision Column CNC Vertical Turning & Horizontal Machining Mill Turn Center

View detail

Precision Column 5-Axis CNC Mill Turn Horizontal & Vertical Machining Company Center

View detail

CNC Horizontal Boring Mill Machine A Versatile Vertical And Horizontal Milling And Machining Center

View detail

Comprehensive CNC Horizontal And Vertical Boring And Milling Machining Center

View detail

Aerospace And Defense Solution High-Speed 5 Axis CNC Horizontal Vertical Machining Center

View detail

High-Speed 5-Axis CNC Horizontal Vertical Machining Center Designed for Aerospace And Defense Industry

View detail

Why Yaogong Boring & Milling Machining Center Most Popular?

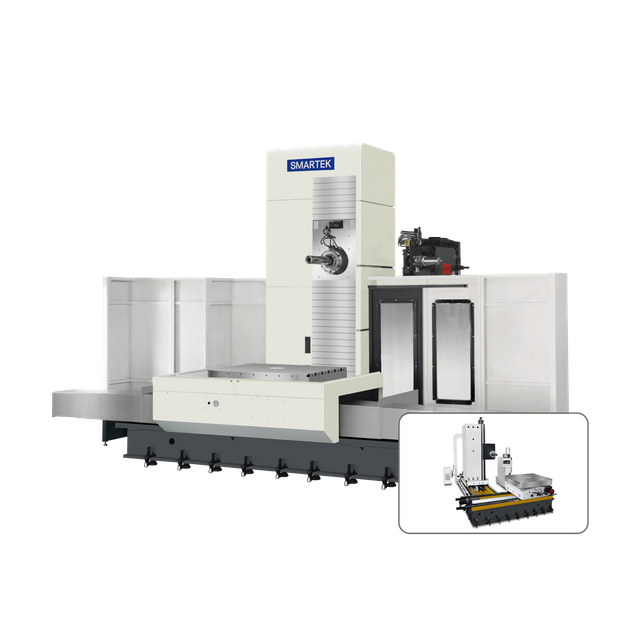

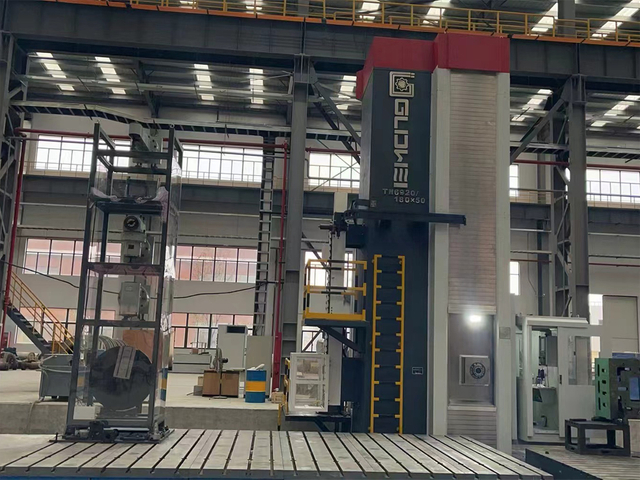

Yaogong Intelligent Equipment Moving Column Boring & Milling Machining Center is a machine tool with high torque, high efficiency, high rigidity and advanced function. According to the requirements of users, with different systems, different precision, different turntable size, can form different grades of different specifications of machine tools.

It is a universal machine tool with the most widely used, belonging to one of the large and wide machine tools, its working performance is mainly boring and milling, but also can be drilled, reaming, milling and other processes of processing, especially suitable for processing porous system, hole spacing requirements more accurate box parts, frame class, mold class parts processing, the workpiece after a clamping, Automatically complete milling, boring, drilling, reaming, milling, tapping and other processes.

It can realize six-axis control, four-axis linkage, arc interpolation and 3D surface machining. With milling head, flat rotating disc and other accessories, so as to expand the processing capacity of the machine.

Machine Characteristics

Bed castings are HT300 m Hanna material
Natural aging is used for stress relief by secondary annealing
Machine achieves high rigidity and stable machining accuracy.
Moving column type Boring & Milling Machining Center, boring shaft diameter selected 110mm/130mm two specifications, spindle speed 2500rpm, with high torque two-stage gear drive automatic transmission, large output torque.

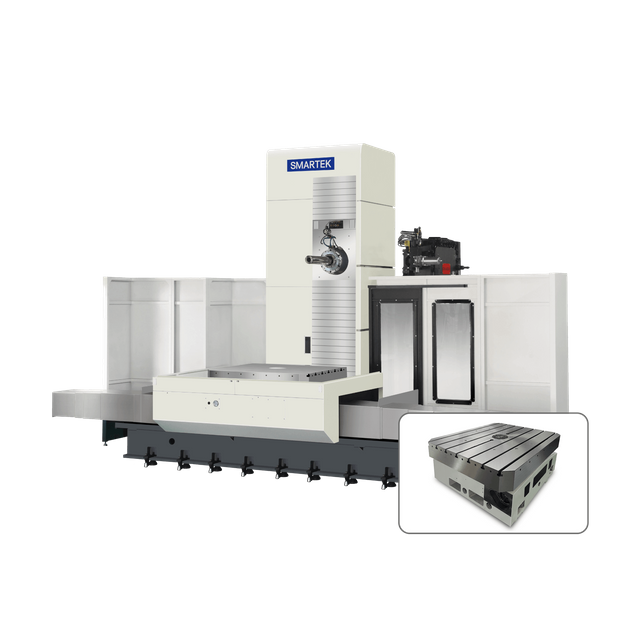

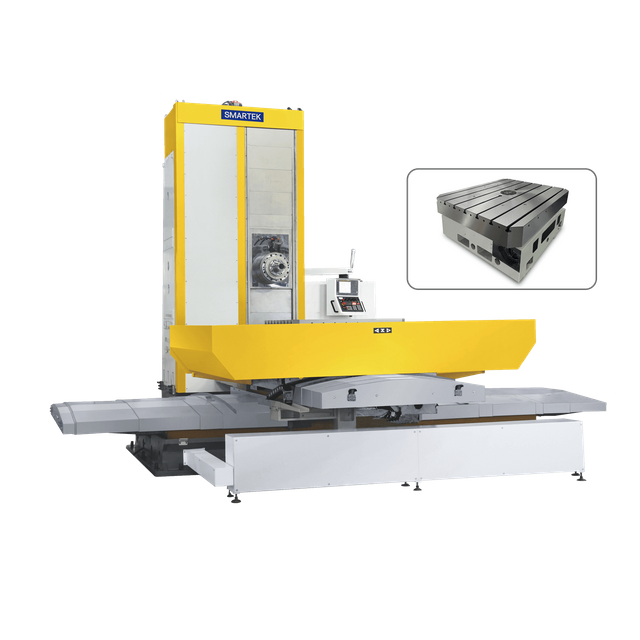

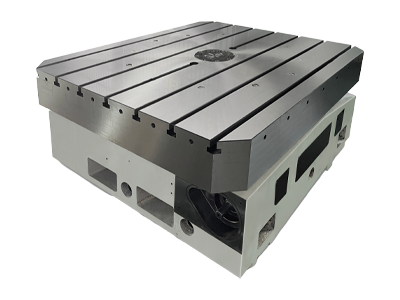

Workbench (Independently Developed Patent Products)

Renishaw laser detector is used to detect the accuracy of the turntable. The segmentation accuracy of the table is 0.001°, the automatic oil pressure locking positioning, and the locking force is large.
1. Internal reinforced structure, strong bearing capacity, internal structure using high-precision ring bearing ring as plane support, with precision shovel flowers to truly realize heavy-duty, high-precision machining tool.
2. The B-axis adopts servomotor and gear drive, double-lead worm drives helical worm gear to achieve good back backlash compensation, B-axis is equipped with grating, digital information feedback is agile, and repeated positioning accuracy is high.

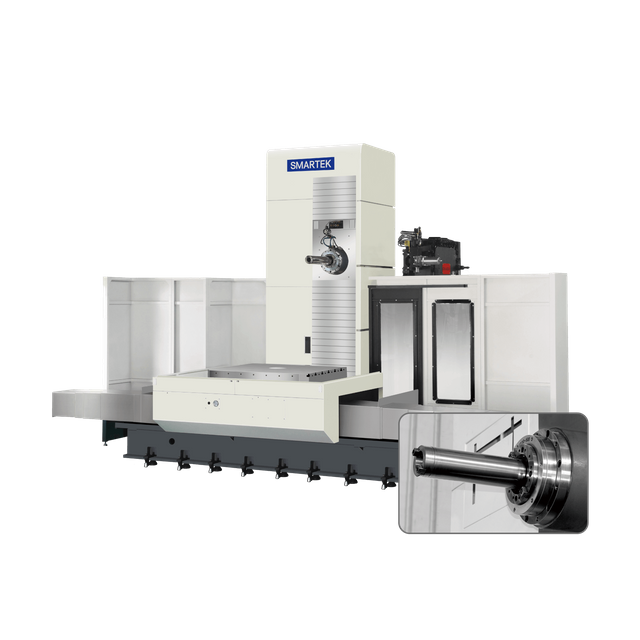

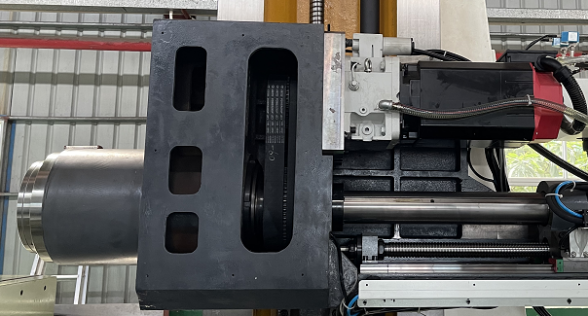

Spindle & Spindle Box

1. Spindle box adopts high strength, high rigidity cage type and keel rib structure design, spindle drive adopts imported BF gear box.
2. The boring shaft push-pull seat adopts two groups of angular contact ball bearings to increase the support rigidity of the boring bar, with small eccentric torque and strong radial bearing capacity.
3. The steel sleeve at both ends of the spindle has automatic lubrication device, so that the boring bar to maintain continuous lubrication is not easy to rust, not easy to wear, the load is small and stable

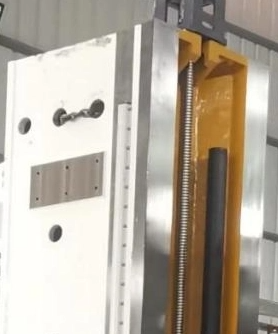

Column

The column mobile heavy cutting structure, the column guide rail adopts rectangular hard rail design, the surface of the guide rail through high frequency heat treatment, surface hardness HRC55d°, high precision surface grinding treatment, the full stroke straightness within 15µm, the sliding surface is pasted with Italian 1.2mm wear plate, making the surface of the guide rail more smooth and wear-resistant. The widened hard rail design ensures that the machine provides the resistance and stability required for heavy cutting.

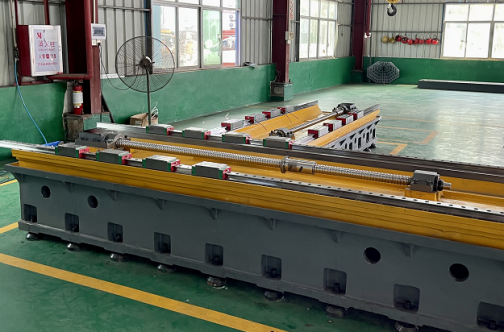

X-axis Z-axis

X axis and Z axis are two heavy-duty roller linear guides with large span.
With the heavy load series of sliders, X-axis is equipped with 6/8 sliders, Z-axis is equipped with 8 sliders, which has strong heavy load capacity and achieves high precision machining.

If you have higher precision machine requirements,

Inquiry Now

Equipment Application Field

Yaogong Intelligent Equipment CNC Boring & Milling Machining Center own best-in-class CNC machining systems, integrally formed rigid structure with specific trace elements to improve stability, easy for clips removal, close-distance operation and handing.

High Precision, High Efficiency

Yaogong Intelligent Equipment products are widely used in Aerospace, National Defense, Industrial Manufacturing, Transportation, Optical Communication, Mold, Electronics, Watches and other industries of precision composite processing.
