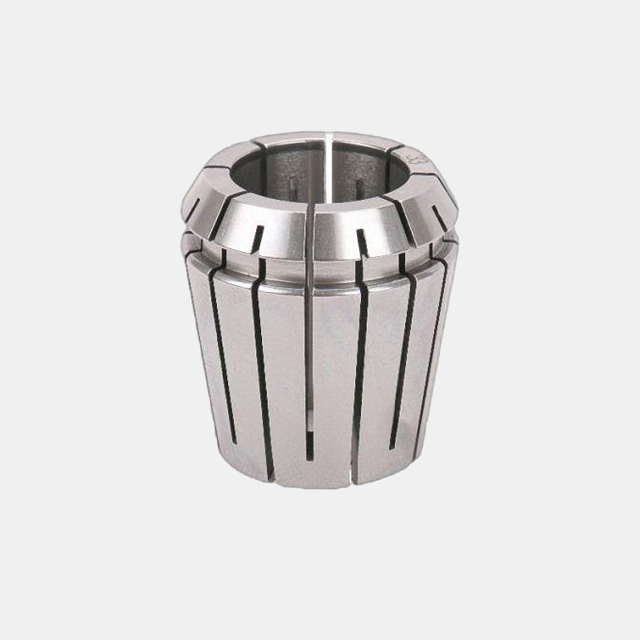

CNC Tool ER Collet

  • Precision standard collet
  • Ideal for clamping round shank tools
  • High quality and multiple specifications
Availability:
Quantity:
Inquire

ER Collet


Metric Size （Unit:mm）
Mocel No D L d Weight (kg)
ER08 8.5 13.5 1 to 5 mm in steps of 0.5mm (9 pcs) 0.01
ER11 11.5 18 1 to 7 mm in steps of 0.5mm (13 pcs) 0.01
ER16 17 27 1 to 10 mm in steps of 0.5mm (19 pcs) 0.03
ER20 21 31 1 to 13 mm in steps of 0.5mm (25 pcs) 0.04
ER25 26 35 2 to 16 mm in steps of 1mm (15 pcs) 0.07
ER32 33 40 2 to 20 mm in steps of 1mm (19 pcs) 0.15
ER40 41 46 3 to 26 mm in steps of 1mm (24 pcs) 0.27
ER50 52 60 12 to 34 mm in steps of 2mm (12 pcs) 0.45



ER08 ER11 ER16 ER20 ER25 ER32 ER40 ER50
NO. Range NO. Range NO. Range NO. Range NO. Range NO. Range NO. Range NO. Range
ER08-01 1 ER11-01 1 ER16-01 1.0~0.5 ER20-01 1.0~0.5 ER25-02 2.0~1.0 ER32-02 2.0~1.0 ER40-03 3.0~2.0 ER50-12 12~10
ER08-1.5 1.5 ER11-1.5 1.5 ER16-1.5 1.5~1.0 ER20-1.5 1.5~1.0 ER25-03 3.0~2.0 ER32-03 3.0~2.0 ER40-04 4.0~3.0 ER50-14 14~12
ER08-02 2.0~1.5 ER11-02 2.0~1.5 ER16-02 2.0~1.0 ER20-02 2.0~1.0 ER25-04 4.0~3.0 ER32-04 4.0~3.0 ER40-05 5.0~4.0 ER50-16 16~14
ER08-2.5 2.5~2.0 ER11-2.5 2.5~2.0 ER16-2.5 2.5~2.0 ER20-2.5 2.5-2.0 ER25-05 5.0~4.0 ER32-05 5.0~4.0 ER40-06 6.0~5.0 ER50-18 18~16
ER08-03 3.0~2.5 ER11-03 3.0~2.5 ER16-03 3.0~2.0 ER20-03 3.0~2.0 ER25-06 6.0~5.0 ER32-06 6.0~5.0 ER40-07 7.0~6.0 ER50-20 20-18
ER08-3.5 3.5~3.0 ER11-3.5 3.5~3.0 ER16-3.5 3.5~3.0 ER20-3.5 3.5~3.0 ER25-07 7.0~6.0 ER32-07 7.0~6.0 ER40-08 8.0~7.0 ER50-22 22~20
ER08-04 4.0~3.5 ER11-04 4.0~3.5 ER16-04 4.0~3.0 ER20-04 4.0~3.0 ER25-08 8.0~7.0 ER32-08 8.0~7.0 ER40-09 9.0~8.0 ER50-24 24~22
ER08-4.5 4.5~4.0 ER11-4.5 4.5~4.0 ER16-4.5 4.5~4.0 ER20-4.5 4.5~4.0 ER25-09 9.0~8.0 ER32-09 9.0~8.0 ER40-10 10~9.0 ER50-26 26~24
ER08-05 5.0~4.5 ER11-05 5.0~4.5 ER16-05 5.0~4.0 ER20-05 5.0~4.0 ER25-10 10~9.0 ER32-10 10~9.0 ER40-11 11~10 ER50-28 28~26


ER11-5.5 5.5-5.0 ER16-5.5 5.5-5.0 ER20-5.5 5.5~5.0 ER25-11 11~10 ER32-11 11~10 ER40-12 12~11 ER50-30 30~28


ER11-06 6.0~5.5 ER16-06 6.0~5.0 ER20-06 6.0~5.0 ER25-12 12~11 ER32-12 12~11 ER40-13 13~12 ER50-32 32~30


ER11-6.5 6.5-6.0 ER16-6.5 6.5~6.0 ER20-6.5 6.5~6.0 ER25-13 13~12 ER32-13 13~12 ER40-14 14-13 ER50-34 34~32


ER11-07 7.0~6.5 ER16-07 7.0~6.0 ER20-07 7.0~6.0 ER25-14 14~13 ER32-14 14~13 ER40-15 15~14





ER16-7.5 7.5~7.0 ER20-7.5 7.5~7.0 ER25-15 15~14 ER32-15 15~14 ER40-16 16~15





ER16-08 8.0~7.0 ER20-08 8.0~7.0 ER25-16 16~15 ER32-16 16~15 ER40-17 17~16





ER16-8.5 8.5~8.0 ER20-8.5 8.5~8.0

ER32-17 17~16 ER40-18 18~17





ER16-09 9.0~8.0 ER20-09 9.0~8.0

ER32-18 18~17 ER40-19 19~18





ER16-9.5 9.5-9.0 ER20-9.5 9.5~9.0

ER32-19 19~18 ER40-20 20~19





ER16-10 10~9.0 ER20-10 10~9.0

ER32-20 20~19 ER40-21 21~20







ER20-10.5 10.5~10



ER40-22 22~21







ER20-11 11~10



ER40-23 23~22







ER20-11.5 11.5~11



ER40-24 24~23







ER20-12 12~11



ER40-25 25~24







ER20-12.5 12.5~12



ER40-26 26~25
