Performance Classification
Mid-Range CNC Machine Tools
Max Turning Diameter/Length

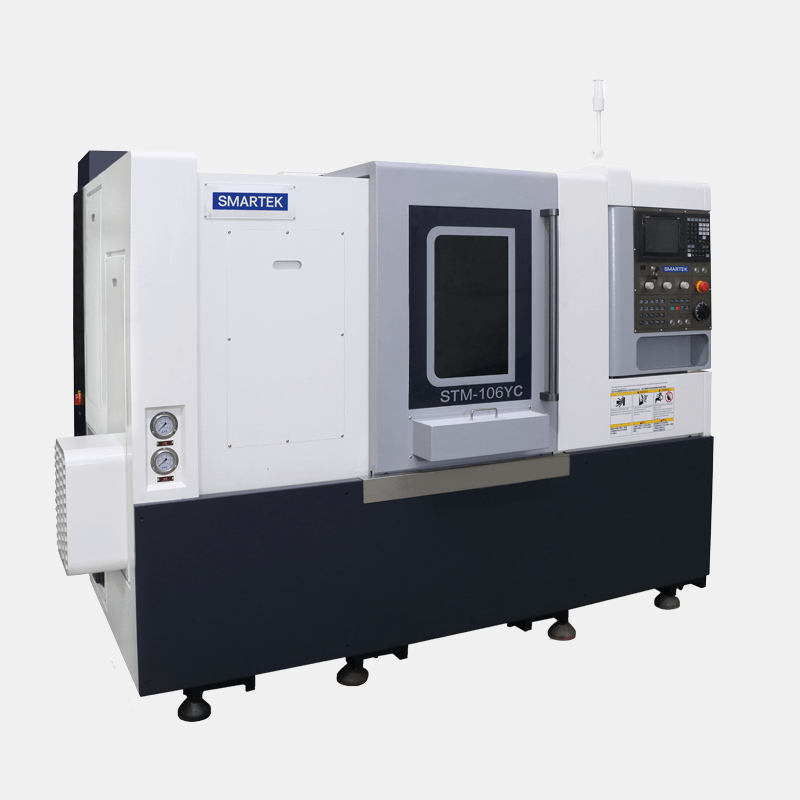

{"json":"[{\"index\":\"0\",\"tran_label\":\"Model NO.\",\"tran_value\":[\"STM-106YC\"]},{\"index\":\"1\",\"tran_label\":\"Processing Precision\",\"tran_value\":[\"0.01~0.02(mm)\"]},{\"index\":\"2\",\"tran_label\":\"Certification\",\"tran_value\":[\"CE\"]},{\"index\":\"3\",\"tran_label\":\"Max Spindle Motor Speed\",\"tran_value\":[\"5500rpm\"]},{\"index\":\"4\",\"tran_label\":\"Number of Tools\",\"tran_value\":[\"15 PCS\"]},{\"index\":\"5\",\"tran_label\":\"Transport Package\",\"tran_value\":[\"Wooden Pallet\"]},{\"index\":\"6\",\"tran_label\":\"Trademark\",\"tran_value\":[\"SMART\"]},{\"index\":\"7\",\"tran_label\":\"Numerical Control\",\"tran_value\":[\"CNC/MNC\"]},{\"index\":\"8\",\"tran_label\":\"Performance Classification\",\"tran_value\":[\"Mid-Range CNC Machine Tools\"]},{\"index\":\"9\",\"tran_label\":\"Max Turning Diameter/Length\",\"tran_value\":[\"300mm\"]},{\"index\":\"10\",\"tran_label\":\"Control System\",\"tran_value\":[\"SYNTEC\"]},{\"index\":\"11\",\"tran_label\":\"Specification\",\"tran_value\":[\"2850mm*1750mm*1950mm\"]},{\"index\":\"12\",\"tran_label\":\"Origin\",\"tran_value\":[\"China\"]}]","type":"2"}
Machining Capacity | Swing Over Bed | mm | ∅400 |
Swing Over Carriage | mm | ∅300 |
Maximum turning diameter | mm | ∅300 |
Interference diameter of adjacent tool machining | mm | ∅135 |
Maximum Machining length | mm | 340 |
Maximum stroke of Z-axis | mm | 400 |
Maximum stroke of X-axis | mm | 220 |
Maximum stroke of Y-axis | mm | ±35 |
Z1-axis motor power | Kw | 2.4 |
Z2-axis motor power | Kw | 2.4 |
X-axis motor power | Kw | 2.4 |
Y-axis motor power | Kw | 2.4 |
X1/Z1/Z2 axis fast moving speed | m/min | 25 |
Y axis fast moving speed | m/min | 15 |
Spindle | Spindle nose | - | A2-5 |
Spindle diameter | mm | ∅170 |
Bar Passing Size | mm | ∅45 |
Supporting chuck | inch | 6" |
Spindle Motor power (continuous/30min) | Kw | 12.5 |
Spindle motor rotation speed | rpm | 2400/5500 |
Spindle motor torque (rated/Max.) | Nm | 50/170 |
Spindle motor current (continuous/30min) | A | 29
|
C-axis resolution | 1/n | 32768 |
Spare Axis | Spindle nose | - | A2-4 |
Spindle diameter | mm | ∅150 |
Bar Passing Size | mm | ∅32 |
Supporting chuck | inch | 5" |
Spindle Motor power (continuous/30min) | Kw | 5.5/10 |
Spindle motor rotation speed (rated/Max.) | rpm | 2000/6000 |
Spindle motor torque (rated/Max.) | Nm | 26/52 |
Spindle motor current (continuous/30min) | A | 18/42 |
C-axis resolution | 1/n | 32768 |
Control System | -- | SYNTEC 22TB |
Turret | Interface specification | -- | BMT40 |
Center height | mm | 70 |
Cutter diameter | mm | 330 |
Number of tools | pcs | 15 |
Shank diameter of square tool holder | mm | 20 |
Shank diameter of boring tool holder | mm | 25 |
Number of driven tools | pcs | 15 |
Driven tool lock | - | ER20 |
Driving power of driven tool motor | Kw | 2.4 |
Maximum Torque of power tool motor | Nm | 11.5 |
Maximum Speed of driven tool motor | rpm | 4000 |
Appearance & Weight | Machine tool appearance | mm | 2850*1750*1950 |
Machine tool weight | Kg | 4500 |
