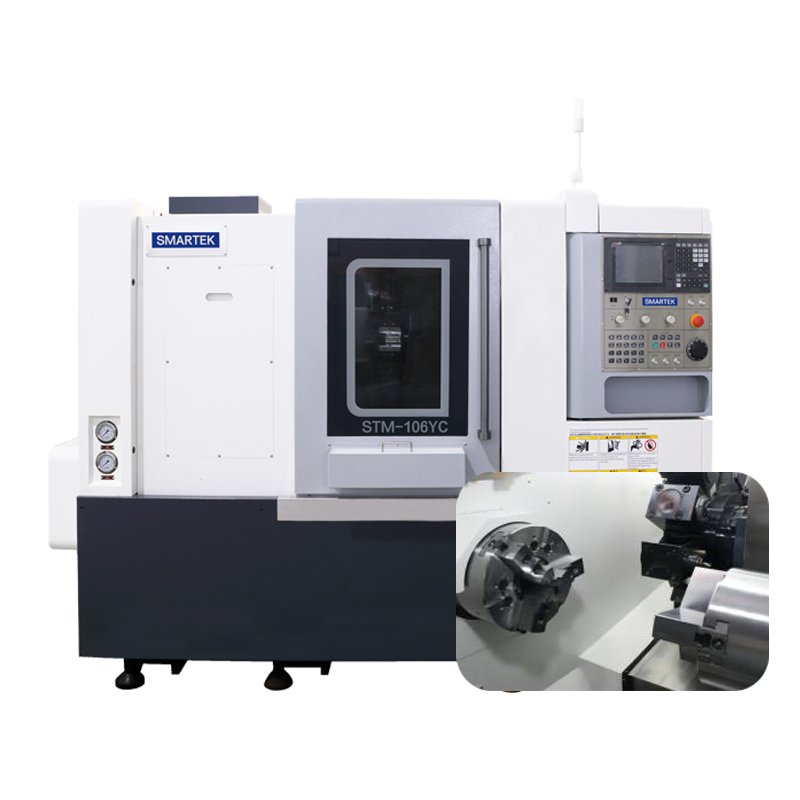

High Precision CNC Lathe CNC Turning Center Machine with SYNTEC Controls (STM-106YC)

Name: High Precision CNC Lathe CNC Turning Center Machine with SYNTEC Controls (STM-106YC)
Brand: SMART
Rating: 5.0 (99 reviews)

Model NO.

STM-106YC

Processing Precision

0.01~0.02(mm)

Certification

CE

Max Spindle Motor Speed

5500rpm

Number of Tools

15 PCS

Transport Package

Wooden Pallet

Trademark

SMART

Numerical Control

CNC/MNC

Performance Classification

Mid-Range CNC Machine Tools

Max Turning Diameter/Length

300mm

Control System

SYNTEC

Specification

2850mm*1750mm*1950mm

Origin

China

Machining Capacity	Swing Over Bed	mm	∅400
	Swing Over Carriage	mm	∅300
	Maximum turning diameter	mm	∅300
	Interference diameter of adjacent tool machining	mm	∅135
	Maximum Machining length	mm	340
	Maximum stroke of Z-axis	mm	400
	Maximum stroke of X-axis	mm	220
	Maximum stroke of Y-axis	mm	±35
	Z1-axis motor power	Kw	2.4
	Z2-axis motor power	Kw	2.4
	X-axis motor power	Kw	2.4
	Y-axis motor power	Kw	2.4
	X1/Z1/Z2 axis fast moving speed	m/min	25
	Y axis fast moving speed	m/min	15
Spindle	Spindle nose	-	A2-5
	Spindle diameter	mm	∅170
	Bar Passing Size	mm	∅45
	Supporting chuck	inch	6"
	Spindle Motor power (continuous/30min)	Kw	12.5
	Spindle motor rotation speed	rpm	2400/5500
	Spindle motor torque (rated/Max.)	Nm	50/170
	Spindle motor current (continuous/30min)	A	29
	C-axis resolution	1/n	32768
Spare Axis	Spindle nose	-	A2-4
	Spindle diameter	mm	∅150
	Bar Passing Size	mm	∅32
	Supporting chuck	inch	5"
	Spindle Motor power (continuous/30min)	Kw	5.5/10
	Spindle motor rotation speed (rated/Max.)	rpm	2000/6000
	Spindle motor torque (rated/Max.)	Nm	26/52
	Spindle motor current (continuous/30min)	A	18/42
	C-axis resolution	1/n	32768
Control System		--	SYNTEC 22TB
Turret	Interface specification	--	BMT40
	Center height	mm	70
	Cutter diameter	mm	330
	Number of tools	pcs	15
	Shank diameter of square tool holder	mm	20
	Shank diameter of boring tool holder	mm	25
	Number of driven tools	pcs	15
	Driven tool lock	-	ER20
	Driving power of driven tool motor	Kw	2.4
	Maximum Torque of power tool motor	Nm	11.5
	Maximum Speed of driven tool motor	rpm	4000
Appearance & Weight	Machine tool appearance	mm	285017501950
Appearance & Weight	Machine tool weight	Kg	4500

Machining Capacity	Swing Over Bed	mm	∅400
	Swing Over Carriage	mm	∅300
	Maximum turning diameter	mm	∅300
	Interference diameter of adjacent tool machining	mm	∅135
	Maximum Machining length	mm	340
	Maximum stroke of Z-axis	mm	400
	Maximum stroke of X-axis	mm	220
	Maximum stroke of Y-axis	mm	±35
	Z1-axis motor power	Kw	2.4
	Z2-axis motor power	Kw	2.4
	X-axis motor power	Kw	2.4
	Y-axis motor power	Kw	2.4
	X1/Z1/Z2 axis fast moving speed	m/min	25
	Y axis fast moving speed	m/min	15
Spindle	Spindle nose	-	A2-5
	Spindle diameter	mm	∅170
	Bar Passing Size	mm	∅45
	Supporting chuck	inch	6"
	Spindle Motor power (continuous/30min)	Kw	12.5
	Spindle motor rotation speed	rpm	2400/5500
	Spindle motor torque (rated/Max.)	Nm	50/170
	Spindle motor current (continuous/30min)	A	29
	C-axis resolution	1/n	32768
Spare Axis	Spindle nose	-	A2-4
	Spindle diameter	mm	∅150
	Bar Passing Size	mm	∅32
	Supporting chuck	inch	5"
	Spindle Motor power (continuous/30min)	Kw	5.5/10
	Spindle motor rotation speed (rated/Max.)	rpm	2000/6000
	Spindle motor torque (rated/Max.)	Nm	26/52
	Spindle motor current (continuous/30min)	A	18/42
	C-axis resolution	1/n	32768
Control System		--	SYNTEC 22TB
Turret	Interface specification	--	BMT40
	Center height	mm	70
	Cutter diameter	mm	330
	Number of tools	pcs	15
	Shank diameter of square tool holder	mm	20
	Shank diameter of boring tool holder	mm	25
	Number of driven tools	pcs	15
	Driven tool lock	-	ER20
	Driving power of driven tool motor	Kw	2.4
	Maximum Torque of power tool motor	Nm	11.5
	Maximum Speed of driven tool motor	rpm	4000
Appearance & Weight	Machine tool appearance	mm	285017501950
Appearance & Weight	Machine tool weight	Kg	4500
