Views: 600 Author: Site Editor Publish Time: 2024-08-02 Origin: Site
Multi-axis manufacturing is a big trend in various industries,realize the difference between CNC 3-axis, 4-axis, and 5-axis milling machines makes it important to the point of optimization of the processes of machining. Here is a brief outline of each type and its benefits.

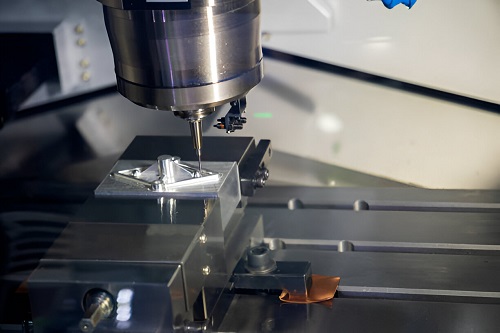

A 3-axis milling machine offers controlled motions along the X, Y, and Z axes. This is the most general milling machine, acceptable for conducting simple, two-dimensional cutting processes. Hence, movement of this machine moves the cutting tool up and down, side to side, and back an forth to shape material.
Advantages:
Easiest to control.
Machining is cost-effective.
Reaches a large number of materials and basic machining tasks.

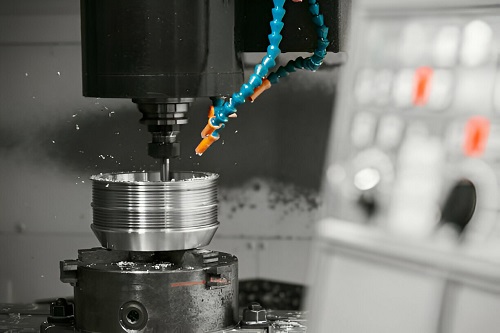

Moving beyond the basic three main axes X, Y, and Z, adds a fourth axis of rotation, typically around the X-axis. Once this is added, it is possible to do geometries that are more complex and do continuous cutting around an object without repositioning.
Advantages:
Much more flexible and accurate.
It is possible to process parts much more sophisticated in design.
Multiplying setups, taking the least number of operations.

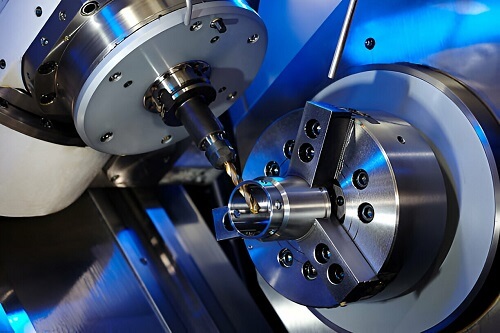

A 5-axis CNC milling machine incorporates two rotational axes, usually about the X and Y axes - A-axis and B-axis. This setup lets the cutting tool approach the workpiece from any angle, thus milling extremely complex and detailed parts.
Advantages:
Extremely high flexibility and accuracy.
Complex and detailed parts can be manufactured in a single operation.
High-precision industries, such as aerospace, medical, and automotive, consider this as an ideal solution.
3-Axis: Great for simple, flat machining jobs and materials; excellent for novices or less complicated jobs.
4-Axis: More optimal when a higher degree of rotation is necessary for going into the detail on parts. Perfect if you have a more complex design that doesn't require full 5-axis capability.
5- Axis: When you have very complex designs and components, you really need a 5-axis mill. It's a must-have tool for every industry requiring extremely high precision and complexity.
Still on the fence about using a 5-axis CNC machine vs. a 3-axis machine or 4-axis CNC machine? Not to worry. SmartekMech is here to help you all through. Our team of professionals can guide you through your CNC machining choices and assist you in selecting the best process for your project.
