What are the different types of milling machines? There are various classifications for milling machines, each containing different types of machines. These various milling machines are:
Vertical milling machines have their spindle axis positioned in the vertical plane. This allows the cutting tool to go deep into the workpiece for tasks like drilling and cutting. There are two main types of vertical milling machines: bed mills and turret mills. Typically, these machines use long and slender cutting tools.

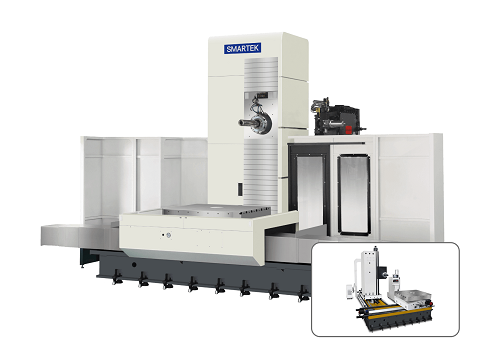

Horizontal milling machines have a spindle axis in the horizontal plane, allowing the cutting tool to approach the workpiece from the side. These machines are typically equipped with a rotary table to enable cutting tools to approach at an angle. The cutting tools used in horizontal milling machines are usually shorter and thicker.
A universal milling machine can perform both horizontal and vertical milling operations thanks to its rotating worktable, which allows access to different planes.
The milling machine axes decide how freely the cutting tool can move. In other words, the axis represents the different directions the tool can travel in. Different milling machines are classified according to these criteria.
3-axis milling machine allows the cutting tool to move along the X, Y, and Z axes in a linear manner. These machines are highly favored for their affordability and user-friendly operations.
4-axis milling machine has the ability to move in three linear axes and also has an extra rotary axis. This rotary axis can be any one of the A, B, or C axes. The A-axis rotates around the X-axis, the B-axis rotates around the Y-axis, and the C-axis rotates around the Z-axis. The 4-axis milling machine is capable of producing intricate and complex parts.

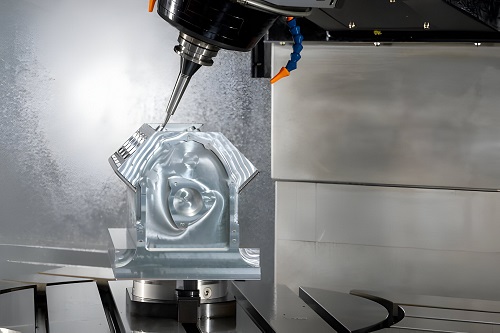

5-axis milling machine uses 3 linear axes and 2 rotary axes. Rotary tables simplify the spindle axis complexity. 5-axis machines can quickly produce intricate parts, making them great for mass production.
6-axis milling machine can move in all three linear and three rotary axes, allowing for machining from all angles without repositioning. 6-axis milling machines can provide high precision suitable for any requirement. Additionally, its production speed is sufficient for mass-production.
The various milling machines based on the type of control mechanism are:
Operating a manual milling machine involves manually moving the cutting tool, making it the most cost-effective method of control. Nevertheless, precision is compromised as human error is more likely.
Tracer-guided milling machine uses a duplicate of the end product to guide the cutting tool, but the manual scanning process is time-consuming and imprecise.
CNC milling machine ues programming instructions to govern the movement of the cutting tool. Prior to the machining operations, Computer Numerical Control (CNC) programs are written in CAM software.
CNC is widely regarded as the most accurate and efficient method for controlling the movement of cutting tools. In numerous industries, CNC milling machines are the preferred choice over other control systems.
