CNC Turning Machines are the backbone of modern manufacturing, providing precision and speed in producing various parts and components. Knowing the components of these machines is key to getting the most out of them. This guide covers the main components of CNC turning machines, what they do and why quality matters.

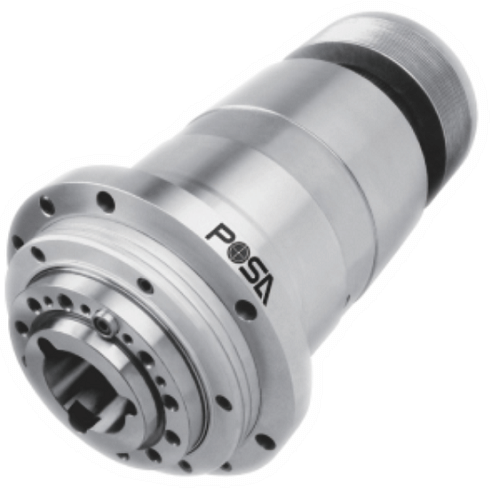

The spindle is the heart of the CNC turning machine. It rotates the workpiece at different speeds depending on the material and application. A good spindle means smooth and accurate rotation which is crucial for precision in manufacturing.

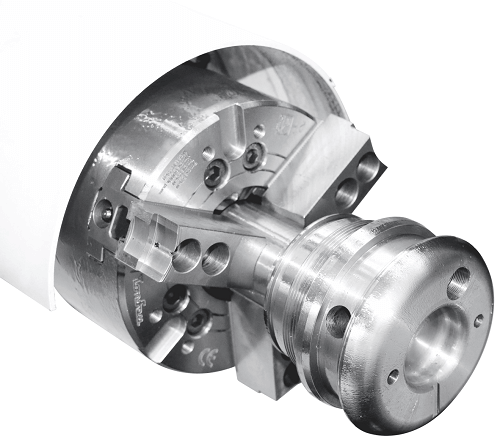

The chuck is the part of the machine that holds the workpiece. CNC lathes use 3 jaw chucks, 4 jaw chucks are also available for complex shapes. The chuck must have a firm and precise grip on the workpiece to avoid any movement during machining.

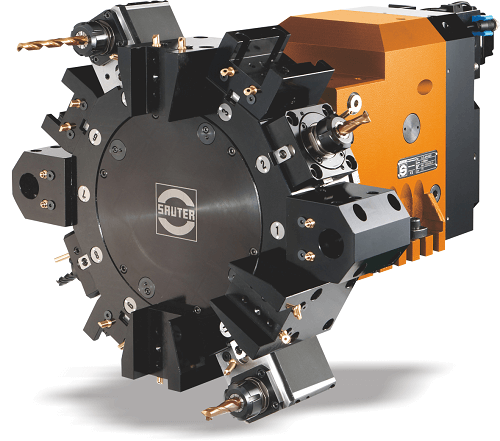

The turret holds multiple tools and can rotate to switch between them. This part makes the machine more versatile, you can do multiple operations on the same workpiece without manual intervention. Good turret means smooth tool change and alignment.

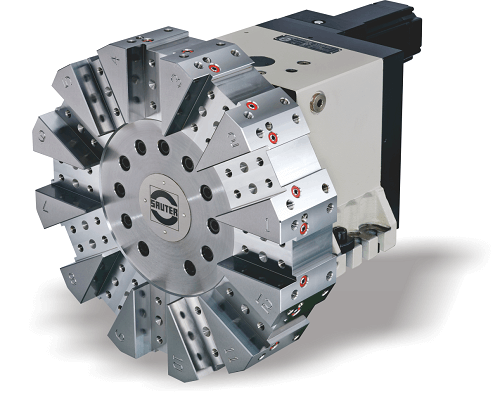

Tool holders are the intermediate between the tools and the turret. They hold the tools in place, so the tools are properly aligned for cutting. Tool holders must be strong and precise to keep the tool position and effectiveness.
Cutting tools come in different types such as drills, end mills and inserts. These tools are responsible for material removal. Carbide inserts are popular because of its hardness and durability. Choosing the right cutting tools for the material and finish is key to getting good results.
Bearings and gearboxes allows smooth movement and operation of the spindle and other rotating parts. Good bearings reduce friction and wear, extends machine life and precision. Good gearbox ensures efficient power and motion transfer.

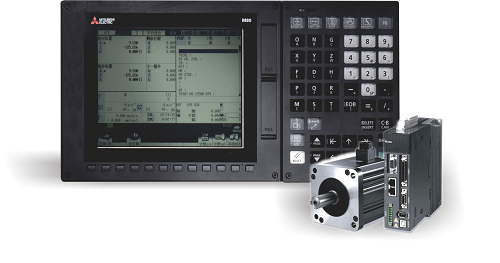

The control panel is the human interface of the CNC turning machine. Operators can input commands, set parameters and monitor the machining. Good control panel with user friendly interface and high resolution display means better user experience and operational efficiency.
SmartekMech CNC turning Machines have factory testing for these components, we ensure our machine is better quality and accuracy than others in the market. Contact us for inquiry, we are ready.
