Gantry machining centers are powerful tools in modern manufacturing. They offer unique capabilities for processing large workpieces with high precision. This article will cover the basics of gantry machining centers, including their definition, main parts, how they work, and where they're used.

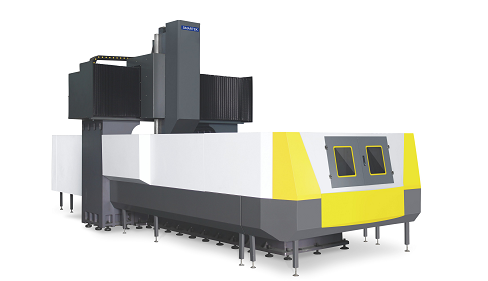

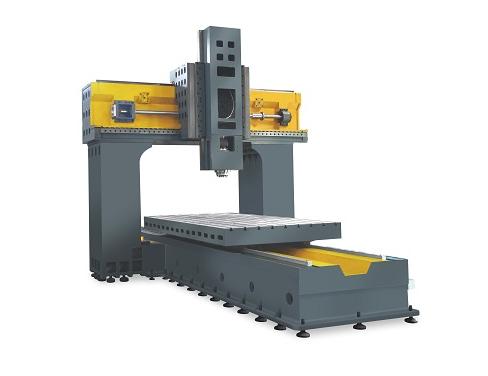

A gantry machining center is a large CNC machine tool designed for cutting, drilling, and shaping big workpieces. It has a bridge-like structure (called a gantry) that moves over a fixed worktable. This setup allows it to work on large, heavy parts while maintaining high accuracy.
1. Gantry: The main bridge-like frame that spans the work area
2. Crossrail: The horizontal beam of the gantry that holds the spindle head
3. Spindle Head: Contains the cutting tool and provides rotational motion
4. Worktable: The stationary base where workpieces are mounted
5. Guideways: Rails that guide the movement of the gantry and spindle
6. Motors: Provide motion to the different parts of the machine
7. CNC Control System: Controls the machine's movements and operations
Gantry machining centers work in the following way:
1. The workpiece is firmly attached to the worktable.
2. The cutting tool, mounted on the spindle head, moves in multiple directions to machine the workpiece.
3. The gantry moves along the length of the worktable (usually called the Y-axis).
4. The crossrail moves up and down (Z-axis) to adjust the cutting height.
5. The spindle head moves across the crossrail (X-axis) and can often rotate for more complex cuts.
There are a few main types of gantry machining centers:
1. Fixed Gantry: The gantry stays in place while the worktable moves.
2. Moving Gantry: The gantry moves over a fixed worktable.
3. 3-Axis Gantry: Provides movement in X, Y, and Z directions.
4. 5-Axis Gantry: Adds two more directions of movement for complex shapes.
Gantry machining centers offer several advantages:
1. Large Work Area: Can handle very big workpieces
2. High Accuracy: Maintains precision over large areas
3. Versatility: Can perform various machining operations
4. Easy Access: Simple loading and unloading of workpieces
5. Stability: Sturdy structure for heavy-duty machining
Gantry machining centers are used in many industries, including:
Aerospace: For making large aircraft parts
Automotive: For producing car body molds
Energy: For creating wind turbine components
Heavy Machinery: For manufacturing construction equipment parts
Marine: For making ship propellers and hull sections
SmartekMech provide china best cnc gantry machine, this gives you the flexibility to tackle a wide range of projects. Welcome to contact us
1. Work Area Size: Make sure it can fit your largest workpieces
2. Axis Configuration: Choose between 3-axis and 5-axis based on your needs
3. Spindle Power: Match to your material and cutting requirements
4. Control System: Pick a user-friendly CNC system
5. Accuracy: Consider how precise your parts need to be
Q: How is a gantry machining center different from a regular machining center?
A: The main difference is the gantry structure, which allows it to work on much larger parts.
Q: Can gantry machining centers do 5-axis machining?
A: Yes, many modern gantry machining centers offer 5-axis capabilities for complex machining.
Q: What industries benefit most from gantry machining centers?
A: Industries that work with large parts, like aerospace, automotive, and heavy machinery.
Q: How do I know what size gantry machining center I need?
A: Consider the size of your largest part, its weight, the accuracy you need, and the types of cuts you'll be making.
Q: Are gantry machining centers more accurate than other CNC machines?
A: They can be very accurate, especially for large parts, but the specific accuracy depends on the individual machine and how it's used.
