In the world of precision manufacturing, choosing the right machining center is crucial for optimizing production efficiency and quality.
Two primary types of machining centers dominate the industry: vertical machining centers (VMCs) and horizontal machining centers (HMCs).
This article will provide an in-depth comparison of these two essential pieces of SmartekMech equipment, exploring their unique features, advantages to help you make informed decisions.
Before delving into the specifics of vertical and horizontal machining centers, it's important to understand what a machining center is and its role in modern manufacturing.
A machining center is a highly automated piece of equipment used in metalworking and other manufacturing processes.
It combines multiple cutting tools and functions into a single machine, capable of performing a variety of operations such as milling, drilling, boring, and tapping.
Machining centers are controlled by computer numerical control (CNC) systems, allowing for precise and repeatable production of complex parts.
1. Spindle: The rotating component that holds and drives the cutting tool
2. Tool changer: Automatically switches between different tools as needed
3. Work table: Holds the workpiece in place during machining
4. Axis systems: Control the movement of the spindle and workpiece
5. CNC control system: Manages the machine's operations based on programmed instructions
Vertical machining centers are characterized by their vertical spindle orientation, which moves up and down perpendicular to the work table.
1. Vertical spindle alignment
2. Fixed work table
3. Typically three-axis movement (X, Y, and Z)
4. Smaller footprint compared to HMCs
1. Cost-effective: Generally less expensive than HMCs, making them accessible to smaller shops
2. Versatility: Suitable for a wide range of machining operations
3. Easy setup and operation: Workpieces are easily visible and accessible
4. Ideal for flat work: Excels at machining parts with primarily horizontal surfaces

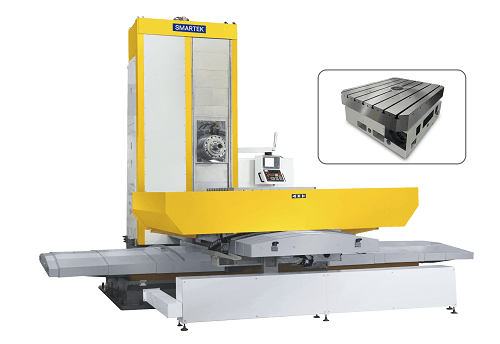

Horizontal machining centers feature a spindle that is parallel to the ground, with the cutting tool approaching the workpiece from the side.
1. Horizontal spindle alignment
2. Rotating work table (often called a pallet)
3. Typically four-axis movement (X, Y, Z, and B)
4. Larger overall machine footprint
1. Superior chip evacuation: Gravity assists in removing chips from the cutting area
2. Higher productivity: Can often machine multiple sides of a part in a single setup
3. Increased rigidity: Allows for heavier cuts and improved accuracy
4. Better coolant application: Horizontal orientation allows for more effective coolant delivery
Both vertical and horizontal machining centers play crucial roles in modern manufacturing.
SmartekMech VMCs and HMCs offer cost-effectiveness and versatility for a wide range of applications.
Choosing SmartekMech's high-precision CNC machining centers can significantly enhance your manufacturing efficiency and competitiveness. Feel free to contact us (smartekmech@gmail.com).
