CBS1250 High-Speed Precision 5-axis Bridge Machining Center CNC Vertical Milling Machine

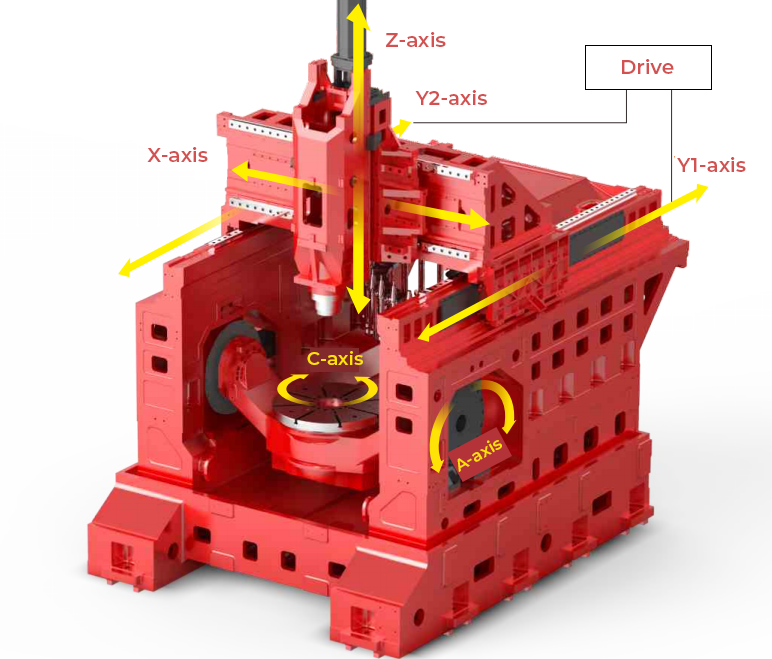

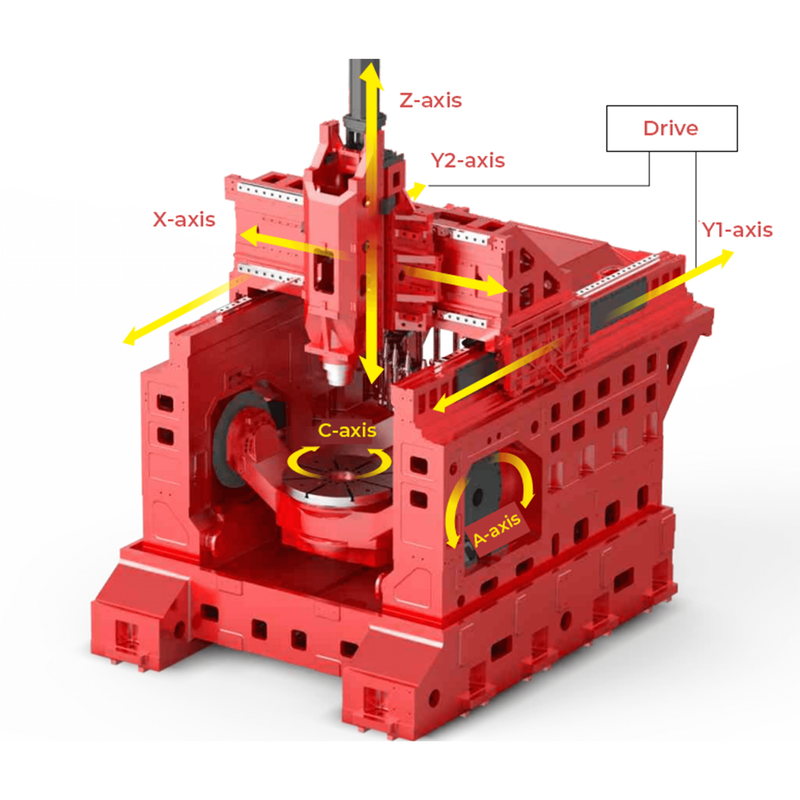

The High-Speed Precision 5-axis Bridge Machining Center CBS1250 developed by our company has the characteristics of high rigidity, high precision and high-efficiency processing. The CBS series machine tools adopt a bridge structure layout. The X/Y/Z axis movement is not affected by the A/C axis, and can maintain high-precision processing for a long time; the X/Y/Z/A/C axis is fully closed-loop controlled to ensure high-precision processing; the whole machine adopts finite element analysis to design each component to provide the best overall stability.
The three-axis rapid displacement is 48 M/min, the T-T tool change time is only 7S, the tool magazine is fully loaded for 24 hours without alarm, and the three-dimensional detection of each machine trial processing sample has passed, ensuring the high efficiency and continuous stability of the machine tool after leaving the factory. It is suitable for various complex shapes of two- and three-dimensional concave and convex models that require 5-axis linkage for one-time processing. It is more suitable for both small and medium-sized batch multi-variety processing and production, and can also enter the automatic line for mass production.
Adopting Siemens ONE system, a 19-inch ultra-large LCD display, dynamic graphic display of tool path, intelligent warning display, self-diagnosis and other functions make the use and maintenance of machine tools more convenient and faster; the high-speed bus communication method greatly improves the data processing capabilities and control performance of the CNC system, facilitating the rapid and efficient transmission and online processing of large-capacity programs.
