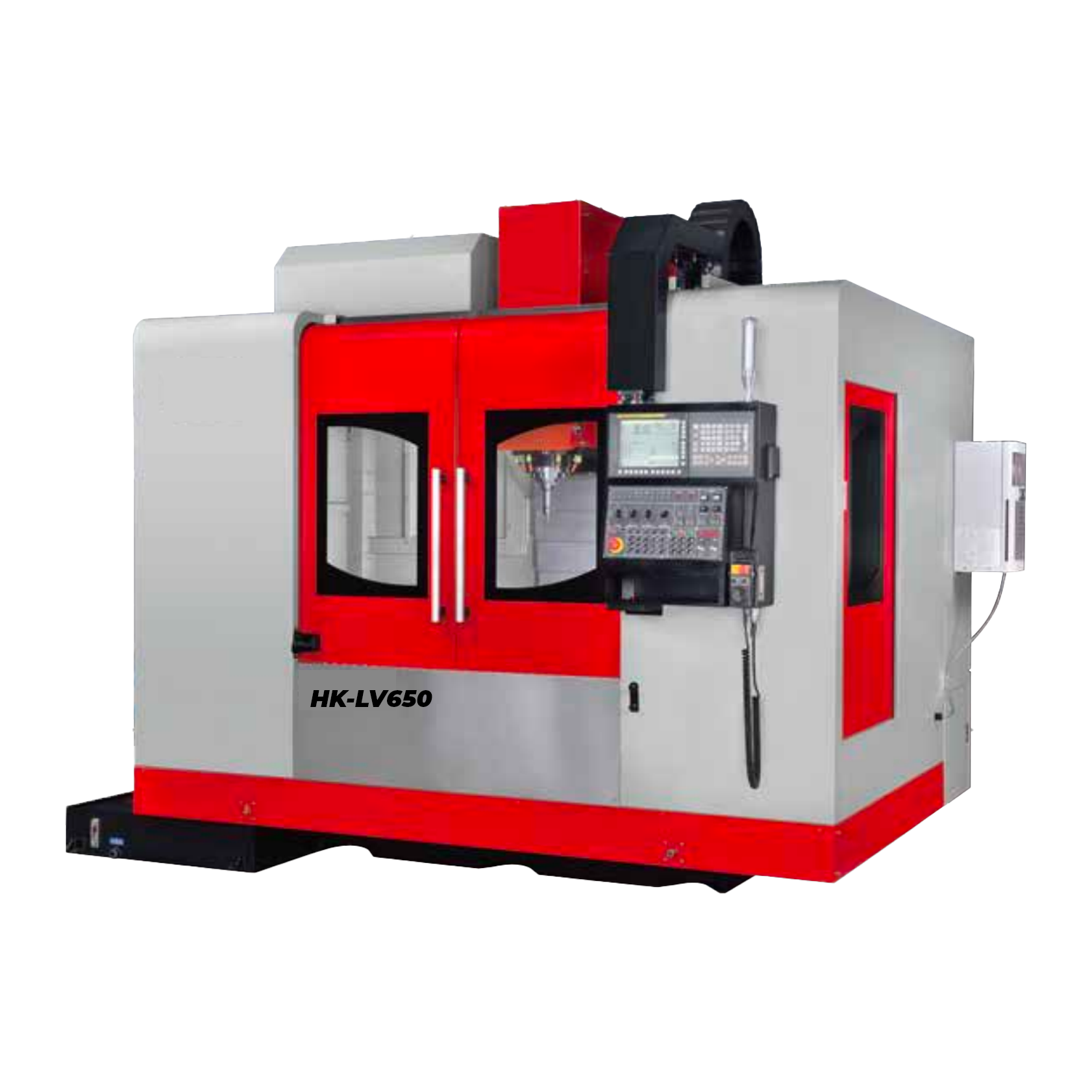

HK-LV650 T-base Vertical Machining Center High-Speed Precision 3-axis Vertical Milling Machine

The HK-LV Series vertical machining centers provide the perfect solution, offer.ing a significant advantage in today's market. Built for durability and high precision, these machining centers incorporate exceptional features whichdeliver outstanding performance. The T-base design, combined with an oversized base and columnensures exceptional rigidity and vibration resistance. Roller-type linear guides on all three axes furtherenhance stability and accuracy, making them ideal for precision manufacturing. Beyond these remarkable attributes, the HEAkE LV Series offers a comprehensive range of advanced capabilities to meetthe diverse demands of modern manufacturing.

Availability:

Quantity:



Inquire

Model:
HK-LV650
Control System:
Faunc

Specifications	HK-LV650
Controller
Faunc 0iMF PLUS 15" LCD + Manual guide I
Travel
X-axis travel	610mm
X-axis travel	500mm
Z-axis travel	510mm
Spindle nose ot table surface	100~610mm
Spindle center to column cover	577mm
Table
Table size	700*500mm
T-slot (No. * Width * Pitch)	518100mm
Max. table load	400kg
Spindle
Spindle taper	BBT40
Spindle	direct drive type 12000rpm, 5.5/7.5kw
ATC
Arm type ATC	24 tools ( automatic tool change )
Tool storage capacity	24 tools ( 30 tools by option in the below)
Tool shank type	BBT40
Max. tool diameter * length	dia.75 x 250 mm
Without adjacent tool (diameter)	dia. 125mm
Max. tool weight	7kg
Feed
Rapid feed rate X/Y/Z axis	24/24/20 m/min (40/40/40 m/min)
Cutting feed rate X/Y/Z axis	15/15/15 mm
Accuracy
ISO 230-2 / 10791-2	A:0.006 / R:0.005
VDI 3441	P:0.008 / PS:0.005
Peripherals
Power requiremet	30 KVA
Pneumatic supply	0.6 Mpa
Coolant tank capacity	365L
Footprint Size (W * D)	2890*3160 mm
Machine weight	5350 kg

CNC Vertical Milling Machine CNC Milling Machine CNC Milling Machining Center CNC Machine Milling Machine 3-axis Machining Center 3-axis Milling Machine

Standard Accessories
1) Cutting coolant unit	11) Rigid tapping
2) Air blast through spindle	12) Machine & Control operation manual
3) Spindle oil cooler unit	13) Ring+side water spray system
4) RS-232 interface	14) Oil skimmer
5) Full splash guard	15) Air / Coolant gun
6) Auto. Lubrication system	16) Air conditioner for electrical cabinet
7) AICC 200 blocks read-ahead	17) Air through ball screws on 3 axis
8) Auto. Power off	18) Dual chip screw on X axis
9) Work lamp	19) MPG
10) Leveling blocks & bolts	20) Mechanical parts 1 year, controller 2 years.

Standard Accessories
1) Cutting coolant unit	11) Rigid tapping
2) Air blast through spindle	12) Machine & Control operation manual
3) Spindle oil cooler unit	13) Ring+side water spray system
4) RS-232 interface	14) Oil skimmer
5) Full splash guard	15) Air / Coolant gun
6) Auto. Lubrication system	16) Air conditioner for electrical cabinet
7) AICC 200 blocks read-ahead	17) Air through ball screws on 3 axis
8) Auto. Power off	18) Dual chip screw on X axis
9) Work lamp	19) MPG
10) Leveling blocks & bolts	20) Mechanical parts 1 year, controller 2 years.
