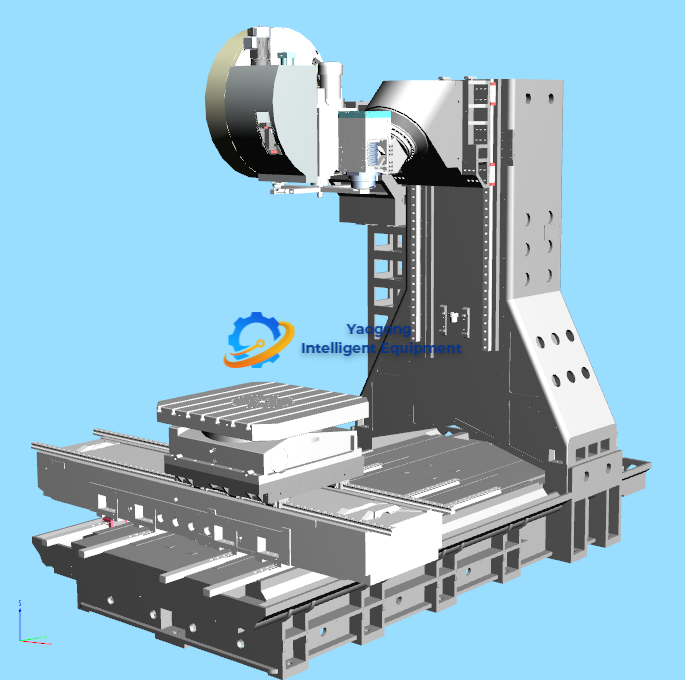

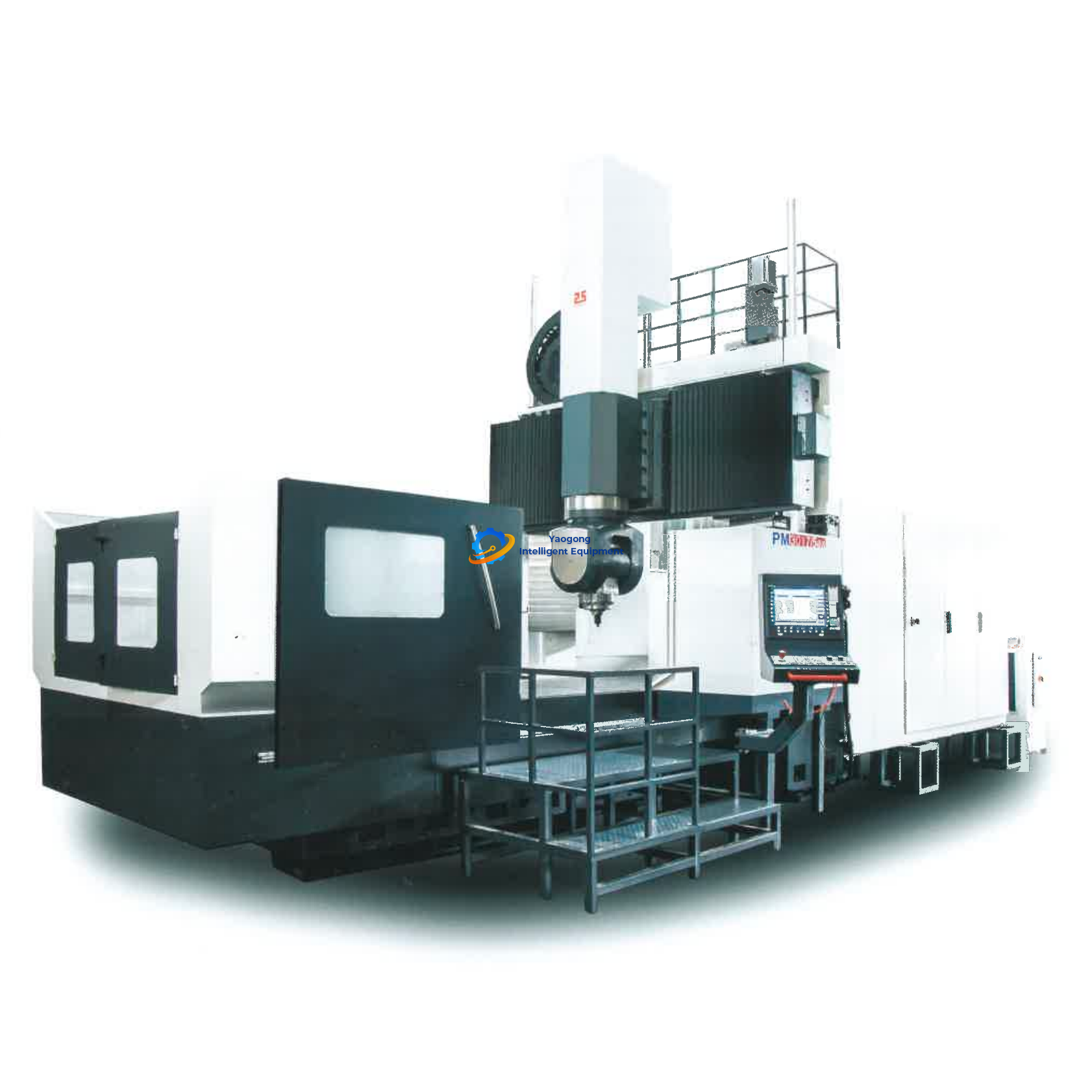

PH1250/5AX
SIEMENS
Item | Unit | PH1250/5AX | |
Travel (Vertical Shaft System) | X-axis travel (table moves left and right) | mm | 1650 |
Y-axis travel (table moves forward and backward) | mm | 1650 | |
Z axis travel (spindle box moves up and down) | mm | 1200 | |
Distance from spindle center to worktable | mm | 180-1380 (Horizontal Spindle) | |
Distance from spindle end to worktable center | mm | -200-1400 (Horizontal Spindle) | |
Distance from spindle end to worktable | mm | 160-1360 (Spindle Vertical) | |
Distance from spindle center to table center | mm | -180-1420 (Spindle Vertical) | |
Workbench (C-axis) | Workbench size | mm | 1000×1250 |
Maximum workpiece weight | kg | 2000 | |
Maximum workpiece diameter | mm | Φ1350 | |
Maximum workpiece height | mm | 1050 | |
Table connection distribution | mm | T-Slot：7×22H7 | |
Minimum indexing angle of worktable | deg. | 0.001° | |
Electric spindle | Electric spindle speed | rpm | 40-12000 |
Electric spindle hole taper | HSK -A100 | ||
Maximum torque of electric spindle(S1/S6) | Nm | 200/235 | |
Electric spindle power(S1/S6) | kW | 54/54 | |
45° swing head (B axis) | 45° swing head speed | rpm | 100 |
45° head rotation angle | deg. | ±180° | |
Feed | X/Y axis fast moving speed | m/min | 24 |
Z-axis fast moving speed | m/min | 20 | |
Cutting feed speed | mm/mim | 5-15000 | |
ATC | Tool magazine tool holder hole taper | HSK -A100 | |
Tool magazine capacity | 24 | ||
Maximum tool diameter (empty) | mm | Φ110（Φ200） | |
Maximum tool length | mm | 400 | |
Maximum tool weight | kg | 15 | |
Tool change time（T-T） | sec. | 6 | |
Knife selection method | Preselection | ||
Other | Total machine electrical capacity | kVA | 60 |
Air source pressure | MPa | 0.55 | |
Floor space | mm | 5580×3604 | |
Machine height | mm | 4780 | |
Machine weight (approx.) | kg | 20000 | |
Accuracy | X/Y/Z positioning accuracy (ISO230-II, full stroke) | mm | 0.008（Grating） |
X/Y/Z repeat positioning accuracy (ISO230-II) | mm | 0.006（Grating） | |
Worktable rotation positioning accuracy | sec. | 10"（Circular grating） | |
Worktable rotation repeat positioning accuracy | sec. | 5"（Circular grating） | |
B-axis swing head rotation positioning accuracy | sec. | 10"（Circular grating） | |
B-axis swing head rotation repeat positioning accuracy | sec. | 5"（Circular grating） | |
