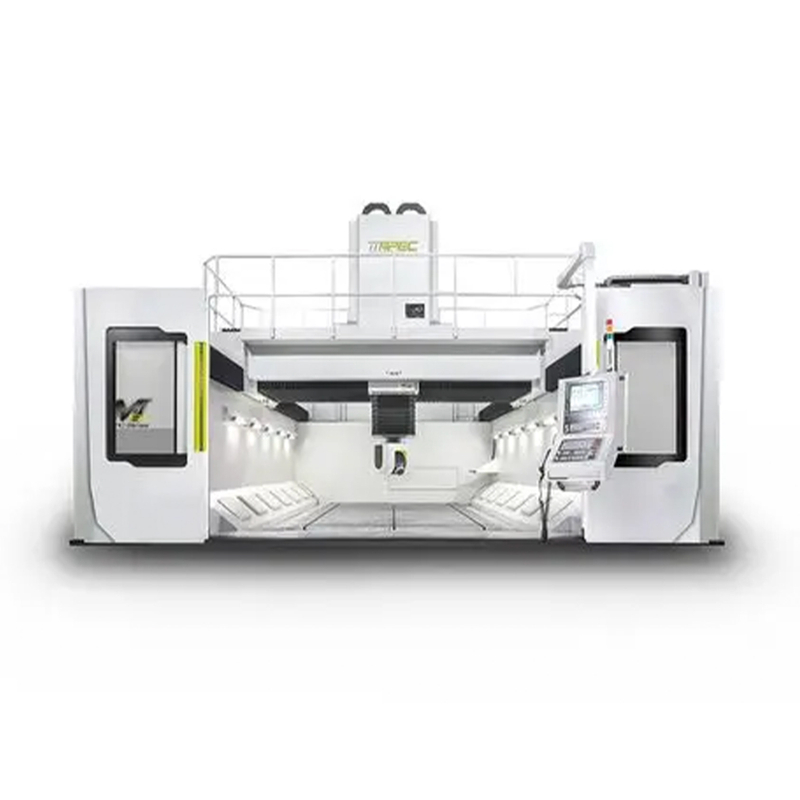

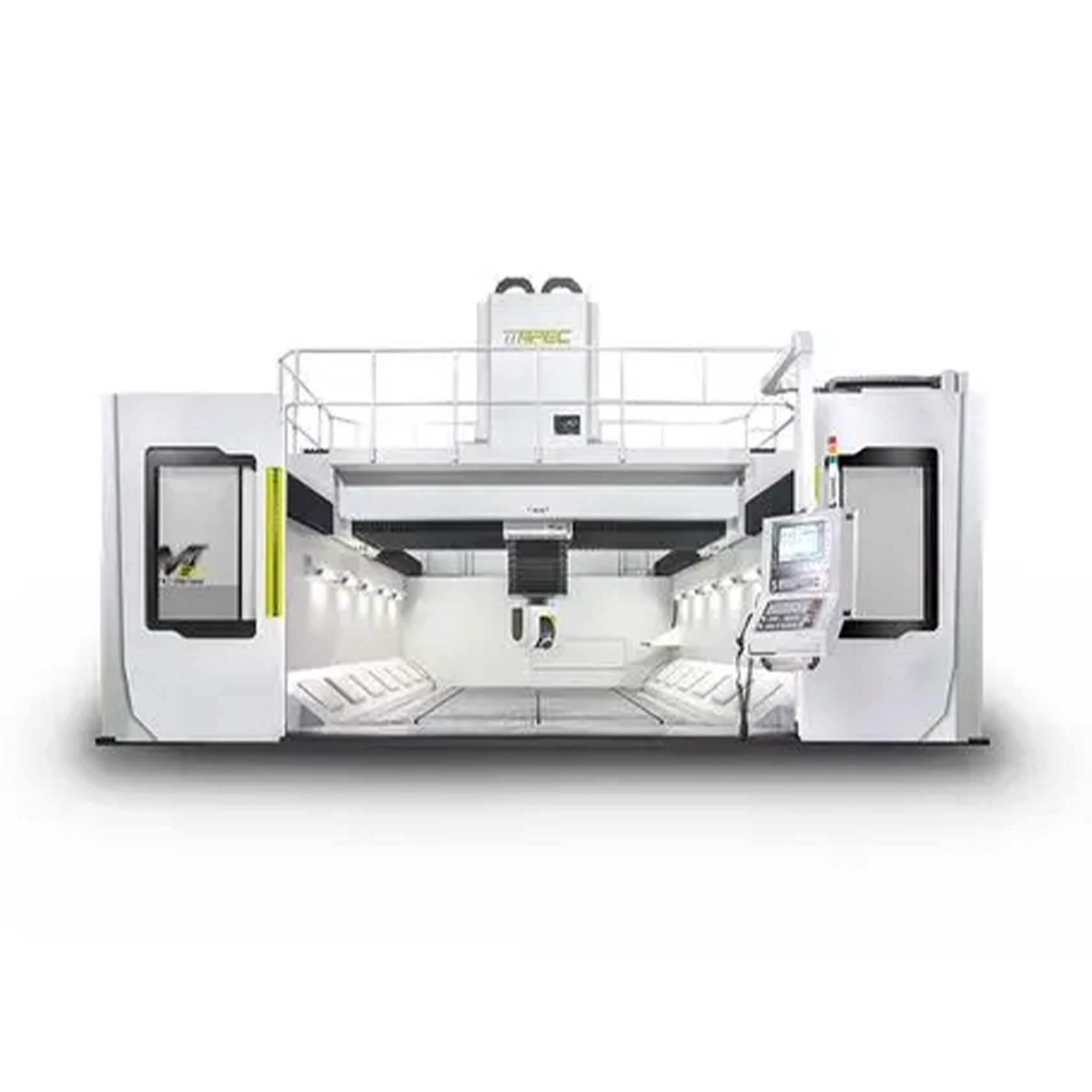

XK2740-50-5X
Huazhong HNC-818M
Item | Unit | Parameter | Remark | ||
Travel | X-axis Travel | mm | 6000 | ||
Y-axis Travel | mm | 4500 | |||
Z-axis Travel | mm | 2000 | |||
Distance from Spindle end to Worktable | mm | 300-2300 | |||
Gantry Width | mm | 5200 | |||
Workbench | Workbench Area | mm | 5000×4000 | ||
T-slot Dimensions | mm | 15-28H7 | |||
Workbench Load | T/㎡ | 5 | |||
Fast Moving Speed | Fast Moving Speed | m/min | X/Y/Z：40/40/20 | ||
AC Swing Head | Transmission Mode | Permanent magnet synchronous A-axis | Permanent magnet synchronous C-axis | ||
Swing Angle Range | degree | ±110° | ±360° | ||
Positioning Accuracy | sec | 8(VDI3441) | 8 | ||
Repeat Positioning Accuracy | sec | 4 | 4 | ||
Braking Torque | kg*m | 200 | 200 | ||
Rated Torque | N.M | 300 | 300 | ||
Speed | rpm/min | 60 | 60 | ||
Spindle | Spindle Type | Electric spindle | |||
Spindle Taper Hole (Model) | HSK-A-63 | ||||
Spindle Rated/Maximum Speed | rpm | 5400/20000 | |||
Spindle Diameter | mm | 130 | |||
Spindle Rated/Maximum Power | kw | 20/24 | |||
Spindle Rated/Maximum Torque | N.M | 35/42 | |||
Linear Guide | X-axis Rail Specifications (Roller) | mm | 2-MSR55LS | P | |
Y-axis Rail Specifications (Roller) | 3-MSR55LS | ||||
Z-axis Rail Specifications (roller) | 2×MSR55LS+2×MSR45LS | ||||
Tool Magazine | Tool Magazine Form | HSK-A-63(40) | |||
Maximum Tool Diameter (Full Tool/Near Empty Tool) | Φ80/φ140 | ||||
Tool Change Time Approx. | s | 5 | |||
Accuracy | X/Y/Z axis Positioning Accuracy | mm | ≤0.025/0.015/0.01 | ||
X/Y/Z axis Repeat Positioning Accuracy | mm | ≤0.02/0.012/0.008 | |||
System | Huazhong HNC-818M | ||||
Machine Weight Approx. | T | 50 | |||
Item | Unit | Parameter | Remark | ||
Travel | X-axis Travel | mm | 6000 | ||
Y-axis Travel | mm | 4500 | |||
Z-axis Travel | mm | 2000 | |||
Distance from Spindle end to Worktable | mm | 300-2300 | |||
Gantry Width | mm | 5200 | |||
Workbench | Workbench Area | mm | 5000×4000 | ||
T-slot Dimensions | mm | 15-28H7 | |||
Workbench Load | T/㎡ | 5 | |||
Fast Moving Speed | Fast Moving Speed | m/min | X/Y/Z：40/40/20 | ||
AC Swing Head | Transmission Mode | Permanent magnet synchronous A-axis | Permanent magnet synchronous C-axis | ||
Swing Angle Range | degree | ±110° | ±360° | ||
Positioning Accuracy | sec | 8(VDI3441) | 8 | ||
Repeat Positioning Accuracy | sec | 4 | 4 | ||
Braking Torque | kg*m | 200 | 200 | ||
Rated Torque | N.M | 300 | 300 | ||
Speed | rpm/min | 60 | 60 | ||
Spindle | Spindle Type | Electric spindle | |||
Spindle Taper Hole (Model) | HSK-A-63 | ||||
Spindle Rated/Maximum Speed | rpm | 5400/20000 | |||
Spindle Diameter | mm | 130 | |||
Spindle Rated/Maximum Power | kw | 20/24 | |||
Spindle Rated/Maximum Torque | N.M | 35/42 | |||
Linear Guide | X-axis Rail Specifications (Roller) | mm | 2-MSR55LS | P | |
Y-axis Rail Specifications (Roller) | 3-MSR55LS | ||||
Z-axis Rail Specifications (roller) | 2×MSR55LS+2×MSR45LS | ||||
Tool Magazine | Tool Magazine Form | HSK-A-63(40) | |||
Maximum Tool Diameter (Full Tool/Near Empty Tool) | Φ80/φ140 | ||||
Tool Change Time Approx. | s | 5 | |||
Accuracy | X/Y/Z axis Positioning Accuracy | mm | ≤0.025/0.015/0.01 | ||
X/Y/Z axis Repeat Positioning Accuracy | mm | ≤0.02/0.012/0.008 | |||
System | Huazhong HNC-818M | ||||
Machine Weight Approx. | T | 50 | |||
