CK61250
| Availability: | |
|---|---|
| Quantity: | |

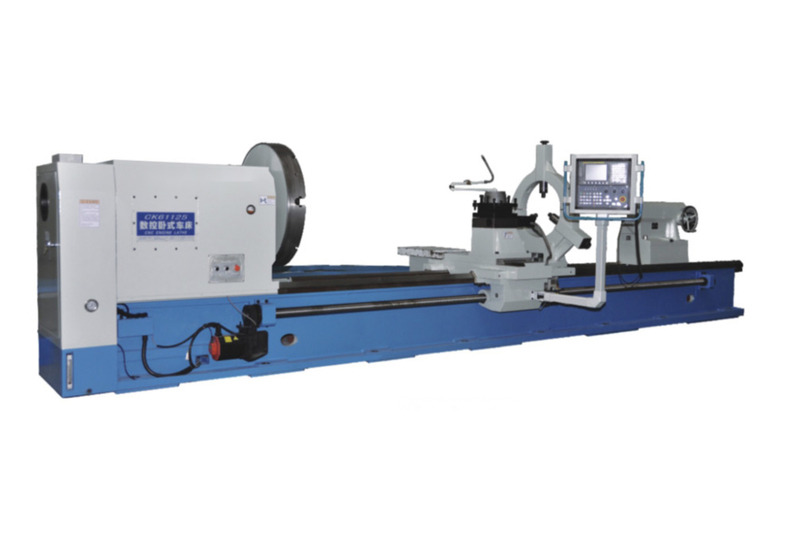

The CK61250x10m/63t CNC Heavy-duty Horizontal Lathe is a new model developed by our company based on standard CNC horizontal lathes specifically for large-diameter rotating parts. It features high precision, high power, high rigidity, sophisticated manufacturing, comprehensive functions, and a high degree of automation. Its main components and structure have been optimized, making it the preferred machine for machining shafts, discs, sleeves, special-shaped surfaces, and screws. It can also process end faces, external diameters, tapers, grooves, arcs, and metric, imperial, modular, and diametral-pitch threads on shafts and discs.
This machine primarily consists of a bed, spindle box, tailstock, saddle tool post, CNC system, automatic chip conveyor, travel table, closed steady rest, hydraulic system, and electrical control. The tailstock and closed steady rest move on workpiece guide rails, while the saddle moves on tool post and bed guide rails. A chip conveyor is built into the foundation, and the tool post and tailstock are equipped with chain support devices. The spindle utilizes a dual-support structure, providing excellent rigidity and high torque output. Each machine component has its own oil pump for forced lubrication. Both the tailstock and toolholder feature rapid traverse and terminal safety features. The tailstock upper body is internally mounted, and its entire movement utilizes a motorized mechanism. The machine's speed, feed rate, and power characteristics are optimally designed to meet the demands of roughing and finishing. The machine boasts strong rigidity, high efficiency, energy efficiency, safety, reliability, ease of operation, and aesthetically pleasing design.
The CNC system uses the imported SINUMERIK ONE (dual-channel) CNC system from SIEMENS, Germany, along with a fully digital AC servo system and motor. The turning main motion utilizes automatic stepless speed change, with two linked control axes. The X-axis utilizes a built-in encoder for semi-closed-loop control, while the Z-axis utilizes a grating scale for full closed-loop control. The ball screw pair utilizes precision ball screws, ensuring excellent positioning accuracy and repeatability. The tool turret is a twelve-position electric turret. The machine is also equipped with lighting and other accessories.
The CK61250x10m/63t CNC Heavy-duty Horizontal Lathe is a new model developed by our company based on standard CNC horizontal lathes specifically for large-diameter rotating parts. It features high precision, high power, high rigidity, sophisticated manufacturing, comprehensive functions, and a high degree of automation. Its main components and structure have been optimized, making it the preferred machine for machining shafts, discs, sleeves, special-shaped surfaces, and screws. It can also process end faces, external diameters, tapers, grooves, arcs, and metric, imperial, modular, and diametral-pitch threads on shafts and discs.
This machine primarily consists of a bed, spindle box, tailstock, saddle tool post, CNC system, automatic chip conveyor, travel table, closed steady rest, hydraulic system, and electrical control. The tailstock and closed steady rest move on workpiece guide rails, while the saddle moves on tool post and bed guide rails. A chip conveyor is built into the foundation, and the tool post and tailstock are equipped with chain support devices. The spindle utilizes a dual-support structure, providing excellent rigidity and high torque output. Each machine component has its own oil pump for forced lubrication. Both the tailstock and toolholder feature rapid traverse and terminal safety features. The tailstock upper body is internally mounted, and its entire movement utilizes a motorized mechanism. The machine's speed, feed rate, and power characteristics are optimally designed to meet the demands of roughing and finishing. The machine boasts strong rigidity, high efficiency, energy efficiency, safety, reliability, ease of operation, and aesthetically pleasing design.
The CNC system uses the imported SINUMERIK ONE (dual-channel) CNC system from SIEMENS, Germany, along with a fully digital AC servo system and motor. The turning main motion utilizes automatic stepless speed change, with two linked control axes. The X-axis utilizes a built-in encoder for semi-closed-loop control, while the Z-axis utilizes a grating scale for full closed-loop control. The ball screw pair utilizes precision ball screws, ensuring excellent positioning accuracy and repeatability. The tool turret is a twelve-position electric turret. The machine is also equipped with lighting and other accessories.
1. Scope of work | |
Maximum rotation diameter on the bed | Φ2500 mm |
Maximum workpiece diameter on tool holder | Φ2000 mm |
Minimum turning diameter of tool holder | φ300 mm |
Maximum workpiece weight between centers | 63t |
Maximum processing workpiece length | 10000 mm |
Bed width (rectangular four-rail) | 2050 mm |
Top Angle | 75° |
2. Spindle box | |
Spindle speed level | Mechanical two-speed stepless |
Spindle speed range | 0.63～125 r/min |
Spindle front support shaft diameter | Φ560 mm |
Chuck diameter (mechanical force screw) | Φ2000 mm（Four-claw structure） |
Chuck holding diameter range | Reverse card: φ700～φ1600 mm Front card: φ350～φ1300 mm |
Maximum torque of the faceplate | 120 KN.m |
Spindle hole taper | Short cone 1:4 φ180 mm |
Spindle head | 1:30 Long tapered spindle head |
Main motor power | DC 200Kw |
Spindle box hydraulic system motor model | 2HP-4P-3-J-V+P1-10-RP01 1.5 KW 1500r/min |
3. Tool holder | |
Tool holder form | Horizontal 12-position power turret |
Use tool cross-section size | 32×32mm |
Tool holder repeat positioning accuracy | ±2" |
Tool holder power motor | 16KW |
Maximum cutting force of tool holder | 25 KN |
Maximum drilling diameter | 25mmX0.25mm/u |
Maximum tapping capacity | M18 x 2,5 or M30 x 2,0 |
Maximum milling capacity | 32mm x 18mmx40mm/min |
Maximum speed of power head | 4000rpm |
Maximum output torque of power head | 70Nm |
Tool holder mounting interface | BMT85 |
4. Feeding system | |
Feed level | Stepless |
Horizontal (X1, X2 axis) rapid moving speed | 4000 mm/min |
Longitudinal (Z1, Z2 axis) rapid moving speed | 4000 mm/min |
Horizontal (X1, X2 axis) feed range | 1～2000 mm/min |
Longitudinal (Z1, Z2 axis) feed range | 1～2000 mm/min |
Horizontal travel (X1, X2 axis) | 900mm |
Longitudinal travel (Z1, Z2 axis) | 10000 mm (full stroke of two tool holders) |
Turning thread range | 1～200 mm |
Feed axis minimum setting unit | 0.001 mm |
X1, X2 axis feed servo motor | 50Nm |
Z1, Z2 axis feed servo motor | 50Nm |
X and Z axis control mode | X-axis semi-closed loop, Z-axis fully closed loop |
5. Tailstock | |
Tailstock quill movement | 200 mm |
Tailstock quill diameter | Φ560 mm |
Tailstock spindle taper hole size | Taper 1:4 Φ180 mm |
Tailstock rapid moving speed | 2000 mm/min |
Tailstock quill moving speed | 50 mm/min |
Tailstock sleeve moving reduction motor | P=3KW |
Tailstock fast moving reduction motor | P=7.5KW |
6. Working environment conditions | |
Power supply | 380V±10%，50Hz±1%， Three-phase alternating current |
Ambient temperature | 0℃～40℃ |
Relative humidity | ≤85% |
Compressed air | 0.4～0.6 MPa |
Machine tool noise | ＜85dB（A） |
7. Other parameters | |
Closed steady rest support range | Φ400～Φ800 mm（Middle roller support) |
Machine weight | About 86t |
Total power consumption of machine tools | About 260Kw |
