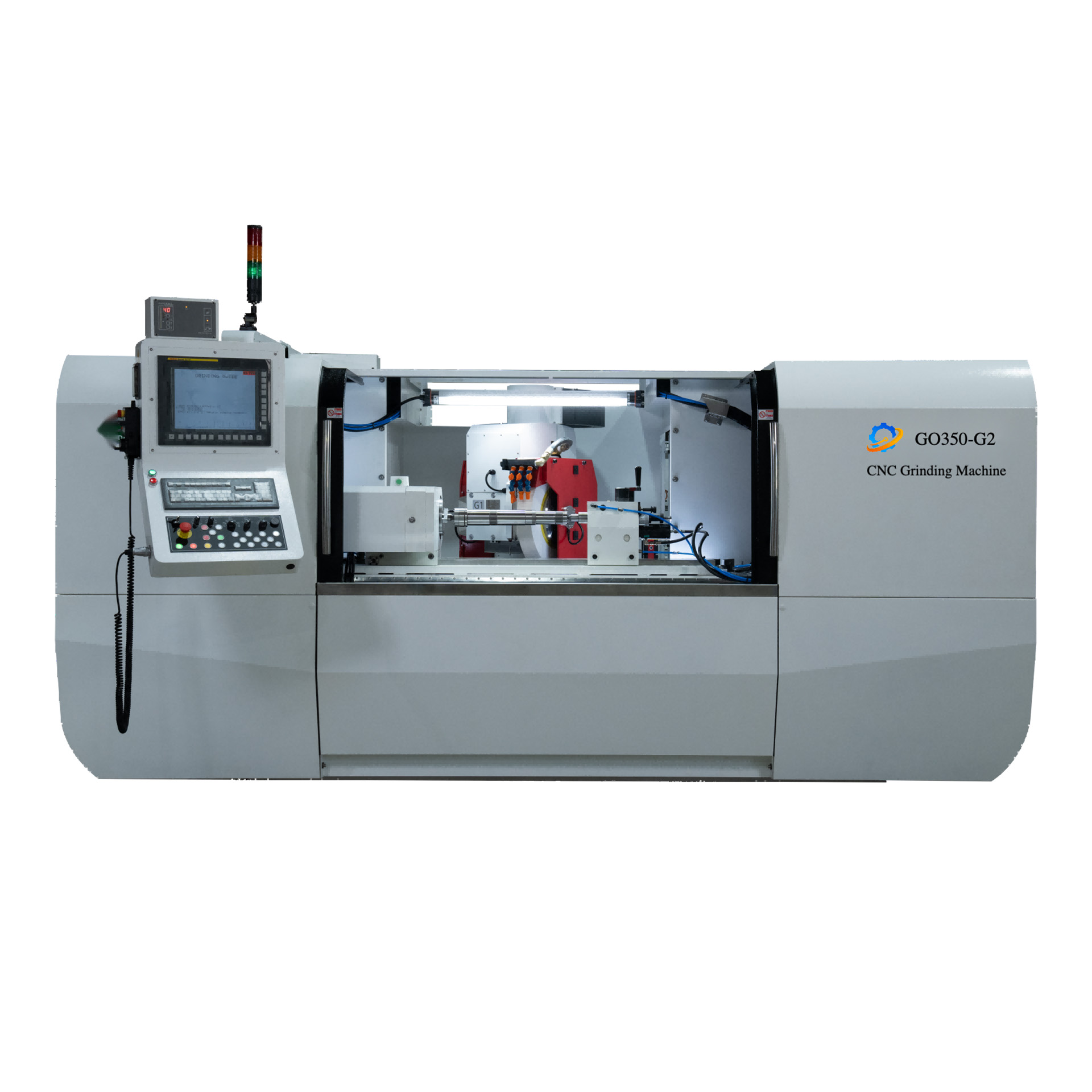

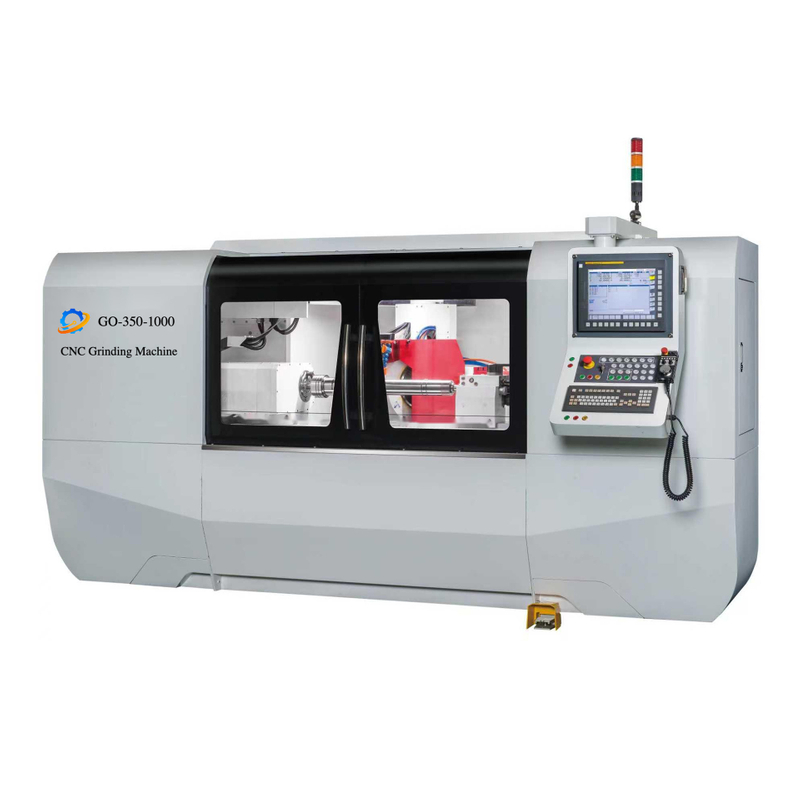

Discover the unparalleled precision and efficiency of the G0-350 CNC Universal Composite Grinder.
Equipped with a 1°1 tooth turret B-axis function, this grinder is tailored to adapt to the specific require-ments of each workpiece. lts unique wheelhead configuration allows it to perform external, internal, and surface grinding in a single setup, making it a highly cost-effective universal grinding solution.
GO-350 CNC ID/OD grinding machine is a precision grinding machine designed for both inner diameter and outer diameter grinding tasks and operates on a computer numerical control (CNC) system, which allows for precise and automated control of the grinding process ensures high precision, versatility, and efficiency, making it ideal for both inside and outside grinding of parts in the automotive, aerospace, manufacturing, medical and tool and die industries.
Machine Feature
1) Turret wheelhead Gl(0D),G2(0D), G3(ID)for complex workpiece, simplify processing program, once and for all, improve the utility of equipment.
2)Power Transmission: precision ballscrew with servo motor drive and HEIDENHAIN linear encoder, improve axial motion's positioning accuracy.
3) Workhead: Use FANUC servo motor, high torque and high stability.
4) Grinding wheel: use built-in spindle which is high rigidity and high torque. Also, can according to customer needs to choose the degree of wheelhead under the range of -10°C~240°C.
Workhead Assembly
Driven by servo motors and equipped with C-axis functionality, the workhead allows for thread grinding and the most intricate non-circular profile grinding techniques. lt incorporates a vacuum function for chip removal, reducing sensor interference, spindle clogging, and rust formation.
Left-side workhead configuration includes a multi-directional wheel dresser for shaping various types of grinding wheels. The optional diamond roller dresser is ideal for dressing CBN and diamond wheels.
System and Software
The Fanuc 0i-TF control system, equipped with our in-house developed interactive software, is intuitive and easy to operate. Its user-friendly interface, along with built-insafety protocols and error alerts, significantly increases productivity.
Wheelhead Assembly
The wheelhead accommodates up to two external grinding spindlesand one internal grinding spindle. The external grinding spindle usesa 500mm diameter and 60mm width wheel, capable of operating at speeds of up to 60m/s. The internal 120mm diameter grinding spindle operates at speeds ranging from 8,000 to 30,000 RPM, providing high-frequency grinding.
Built-in Audio Features
1) Eliminate idle travel, reducing grinding cycle time.
2) Monitor the grinding process to ensure consistent wheel performance.
3) Control grinding pressure to maintain workpiece dimension stability.
4) Collision prevention features guarantee safety during unstable operations, extending spindle and wheel lifespan.
Discover the unparalleled precision and efficiency of the G0-350 CNC Universal Composite Grinder.
Equipped with a 1°1 tooth turret B-axis function, this grinder is tailored to adapt to the specific require-ments of each workpiece. lts unique wheelhead configuration allows it to perform external, internal, and surface grinding in a single setup, making it a highly cost-effective universal grinding solution.
GO-350 CNC ID/OD grinding machine is a precision grinding machine designed for both inner diameter and outer diameter grinding tasks and operates on a computer numerical control (CNC) system, which allows for precise and automated control of the grinding process ensures high precision, versatility, and efficiency, making it ideal for both inside and outside grinding of parts in the automotive, aerospace, manufacturing, medical and tool and die industries.
Machine Feature
1) Turret wheelhead Gl(0D),G2(0D), G3(ID)for complex workpiece, simplify processing program, once and for all, improve the utility of equipment.
2)Power Transmission: precision ballscrew with servo motor drive and HEIDENHAIN linear encoder, improve axial motion's positioning accuracy.
3) Workhead: Use FANUC servo motor, high torque and high stability.
4) Grinding wheel: use built-in spindle which is high rigidity and high torque. Also, can according to customer needs to choose the degree of wheelhead under the range of -10°C~240°C.
Workhead Assembly
Driven by servo motors and equipped with C-axis functionality, the workhead allows for thread grinding and the most intricate non-circular profile grinding techniques. lt incorporates a vacuum function for chip removal, reducing sensor interference, spindle clogging, and rust formation.
Left-side workhead configuration includes a multi-directional wheel dresser for shaping various types of grinding wheels. The optional diamond roller dresser is ideal for dressing CBN and diamond wheels.
System and Software
The Fanuc 0i-TF control system, equipped with our in-house developed interactive software, is intuitive and easy to operate. Its user-friendly interface, along with built-insafety protocols and error alerts, significantly increases productivity.
Wheelhead Assembly
The wheelhead accommodates up to two external grinding spindlesand one internal grinding spindle. The external grinding spindle usesa 500mm diameter and 60mm width wheel, capable of operating at speeds of up to 60m/s. The internal 120mm diameter grinding spindle operates at speeds ranging from 8,000 to 30,000 RPM, providing high-frequency grinding.
Built-in Audio Features
1) Eliminate idle travel, reducing grinding cycle time.
2) Monitor the grinding process to ensure consistent wheel performance.
3) Control grinding pressure to maintain workpiece dimension stability.
4) Collision prevention features guarantee safety during unstable operations, extending spindle and wheel lifespan.
Type | Unit | Specification | |
Distance between Center | mm | 1000/650/400 | |
Grinding Length | mm | 1000/650/400 | |
Center Height | mm | 175 | |
Maximum Workpiece Weight | kg | 150/80 | |
Cross Slide: X-axis | |||
Maximum Travel | mm | 275/250 | |
Speed | mm/min | 0.001~10000 | |
Longitudinal Slide: Z-axis | |||
Maximum Travel | mm | 1150/880/620 | |
Speed | mm/min | 0,001~10000 | |
Wheelhead Assembly | Fixed Wheelhead | Turret Wheelhead | |
Rotation Range | 0°/15°/30° | -10°~240° | |
Direct Drive Power | kw | Up to 11 | |
Grinding Wheel Specification | mm | 500*60*203 | |
Grinding Wheel Linear Speed | m/s | 60 | |
Diameter of Internal Grinding Spindle Hole | mm | 120 | |
Drive Power | kw | 15 | |
Spindle Rotation Speed | rpm | 8,000~30,000 | |
Workhead | |||
Speed Range | rpm | 1~1000 | |
Drive Power(Fanuc) | kw | 1.8/1.2 | |
Grinding Roundness Accuracy | mm | <0.0008 | |
Assembly Taper | MT4/MT5 | ||
Tailstock | |||
Matching Taper Hole | MT3/MT4 | ||
Sleeve Travel | mm | 35(1.37”) | |
Sleeve Diameter | mm | 50 | |
Grinding Taper Precision Fine Adjustment | µm | ±20 |
