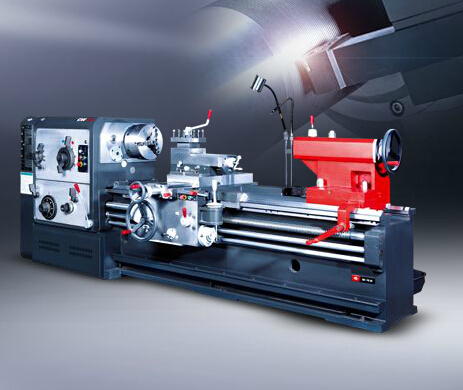

CA6180
| Availability: | |
|---|---|
| Quantity: | |
CW6180 Lathe Technical Specifications | ||
Name | Unit | Parameter |
Bed frame type | Horizontal | |
Maximum slewing diameter of the bed frame | mm | 800 |
Maximum slewing diameter on the tool holder | mm | 520 |
Maximum workpiece length | mm | 5000 |
Spindle through-hole diameter and spindle head type | mm | Φ104，D11 |
Tapered front end and taper of the spindle through hole | mm | Φ120 Φ140 Moss 6 |
Spindle speed levels and range | r/min | 18 types/5.4-720 |
Longitudinal feed order and range | mm/r | 64 types/0.06-24.3 |
Range 1:1 | mm/r | 0.1-1.52 |
Range 16:1 | mm/r | 1.6-24.3 |
Use the interchange gear for micro-feed range | mm/r | 0.06-0.912 |
The ratio of lateral feed to longitudinal feed | 1:2 | |
Machine tool lead screw pitch | mm | 12 (metric) 1/2 (imperial) |
Number and range of metric thread types | mm | 50 types of threads, 1-240 (plus 14 non-standard thread types) |
Number and range of imperial thread types | 26 types 14-1t.p.i | |
Number and range of transverse thread types | mm | 53 types 0.5-120 |
Number and range of diaphragm thread types | 24 types 28-1 DP | |
Maximum lateral travel of the lower tool post | mm | 500 |
Maximum travel of the upper tool post | mm | 200 |
Tailstock sleeve stroke | mm | 250 |
Main motor power | kw | 11 |
Fast motor power | kw | 1.1 |
Cooling pump motor power | w | 90 |
Guide rail hardness | HRC52 | |
Guide rail width | mm | 600 |
The machine tool weighs approximately | KG | 8000 |
Machine tool dimensions | mm | 7200x1500x1550 |
