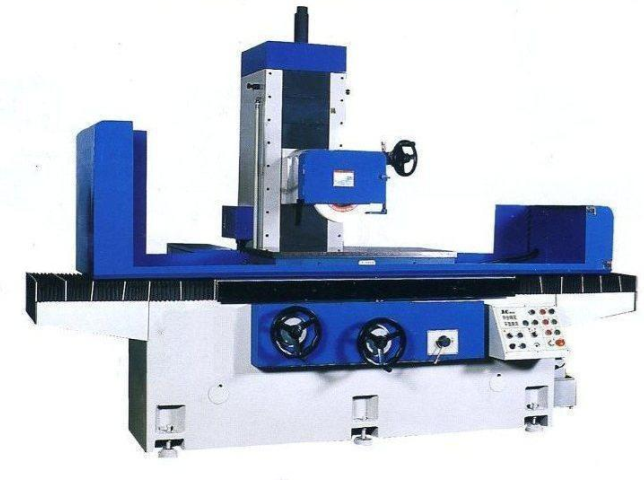

M7160x1200-CK Surface Grinding Machine Used for High-precision Grinding of Flat Surfaces of Steel Parts Cast Iron And Non-ferrous Alloys

Processing Capacity

Worktable specification

mm

1200*600

Max. longitudinal travel

mm

1300

Max. cross travle

mm

640

Max. distance between worktable surface to spindle center

mm

750

Max. workpiece weight

kgs

1000

Worktable

Worktable T-slot

mm*N

16*3

Worktable travel speed

m/min

5-25

Cross feed by handwheel

Per division

mm

0.02

Per revolution

mm

5

Cross automatic feed

mm

0.5-12

Cross rapid travel

50HZ

mm

1250

60HZ

mm

1500

Grinding Wheel

Wheel size

mm

400*40*127

Spindle rotation speed

50HZ

R.p.m

1450

60HZ

R.p.m

1740

Feed Structure

Max. movement

mm

650

Vertical feed by handwheel

Per division

mm

0.005

Per revolution

mm

0.25

Automatic feed volume

mm

/ (BZD)

0.002~0.04(CK)

Vertical rapid travel speed

m/min

230

Motor

Spindle motor

HXP

10*4

Vertical drive motor

HXP

1/4*6

Vertical servo motor

HXP

/ (BZD)

Servo 1KW(CK)

Servo

Oil pump motor

HXP

7.5*6

Coolant pump motor

HXP

1/8*2

Cross drive motor

HXP

1/4*6

Size

Machine height

mm

2400

Floor space

mm

2500*5000

Net weight

kgs

5500

Gross weight

kgs

6500
