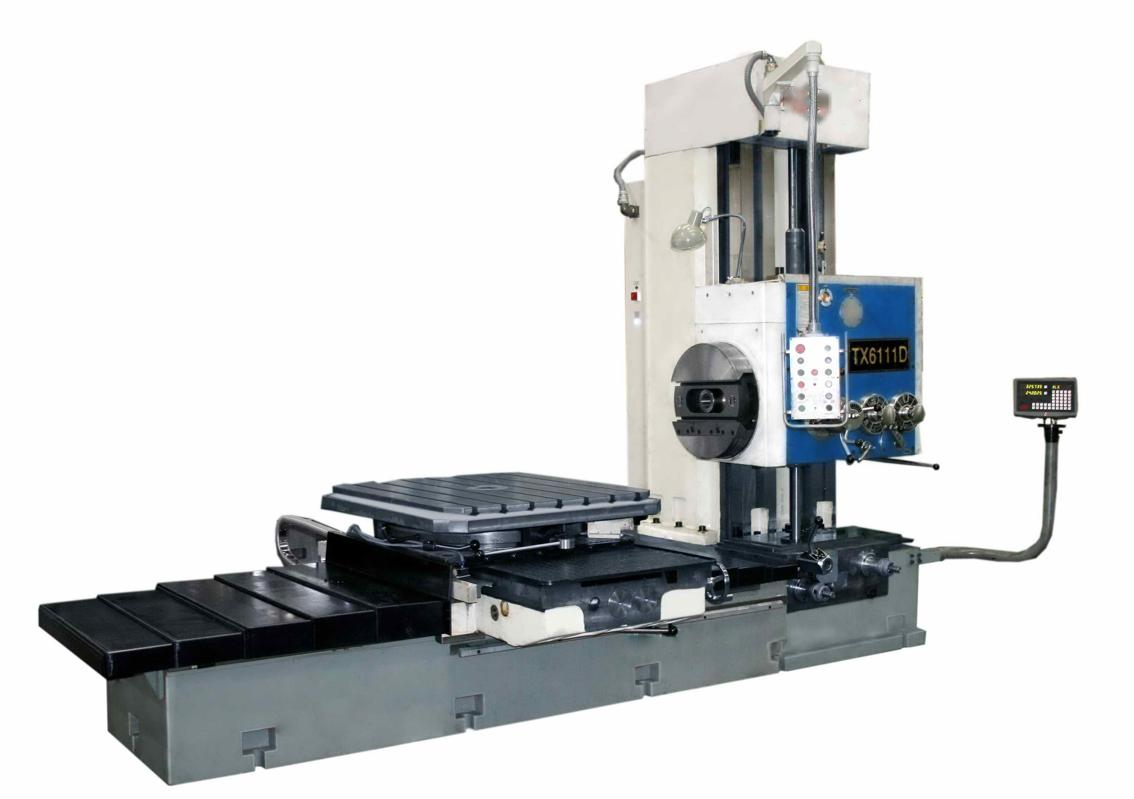

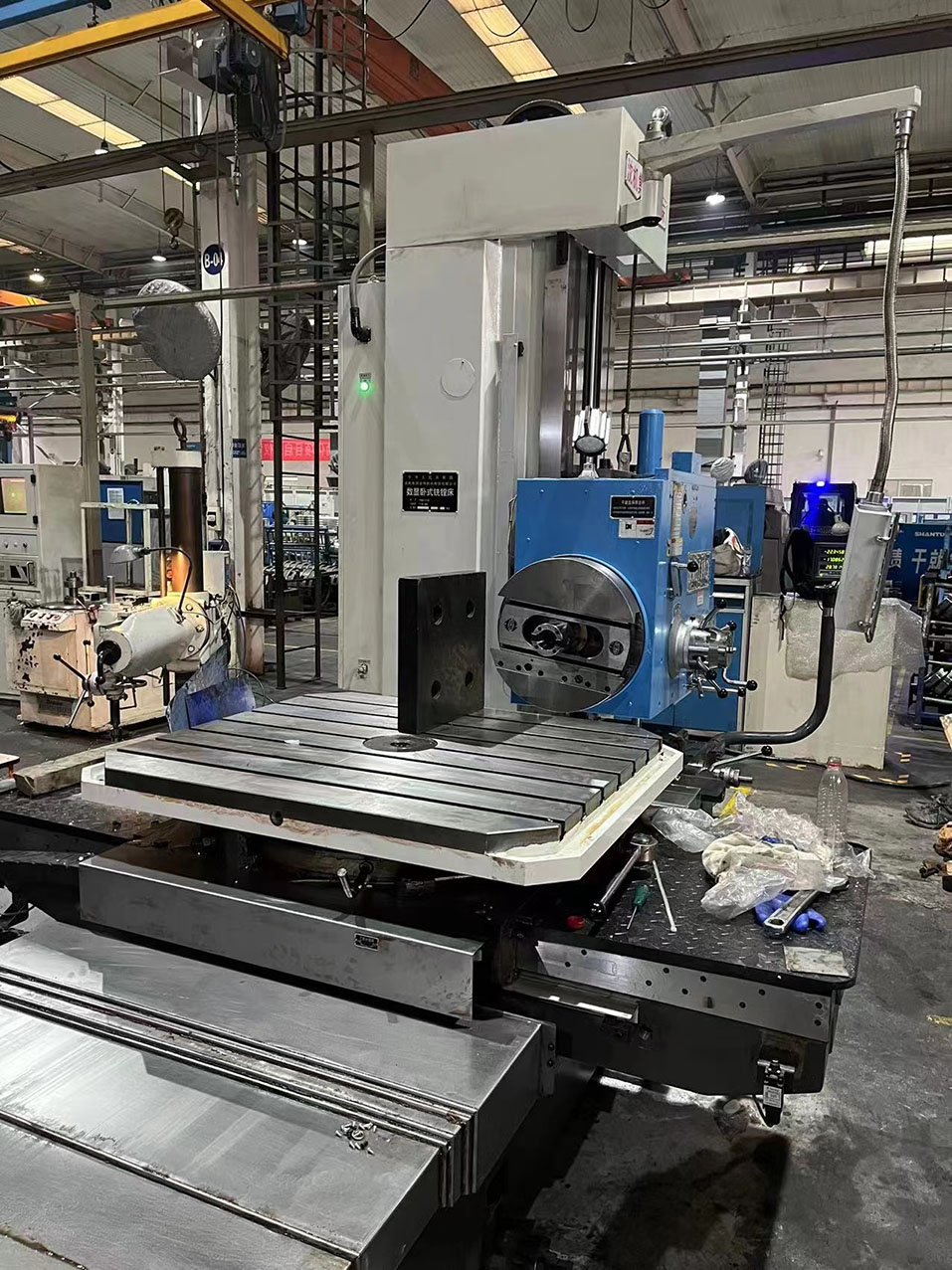

TX6111D
| Availability: | |
|---|---|
| Quantity: | |
Model | TX6111D | Units | ||
Spindle head | Boring spindle diameter | 110 | mm | |
Spindle taper | ISO 50 | -- | ||
Spindle speed | 18 steps 9～1000 | r/min | ||
Main motor power | 7.5 | kW | ||
Spindle max torque | 1000 | Nm | ||
Spindle max resistance | 15000 | N | ||
Min distance from spindle center to table surface | 0 | mm | ||
Max drilling diameter of spindle | 65 | mm | ||
Max boring diameter of spindle | 300 | mm | ||
Machine travel | Table cross travel (X) | 1000 | mm | |
Vertical travel of spindle head(Y) | 900 | mm | ||
Table longitude travel (Z) | 1400 | mm | ||
Spindle axial travel (W) | 600 | mm | ||
Facing head slide travel(U) | 170 | mm | ||
Rotary table | Table size | 1000×1100 | mm | |
Max loading capacity | 2500 | kg | ||
Facing head | Facing head dia. | 540 | mm | |
Facing head speed | 14 steps 6～221 | r/min | ||
Max torque of facing head | 1500 | Nm | ||
Max boring diameter of facing head | 600 | mm | ||
Feed speed range | Feed capacity | Spindle and table longitude and cross feed capacity (calculate as per spindle) | 12 steps 0.04～6 | mm/r |
Spindle and table longitudes and cross feed capacity (calculate as per facing head) | 12 steps 0.06～6 | mm/r | ||
Facing ehad slide feed capacity (calculate as per facing head) | 12 steps 0.04～6 | mm/r | ||
Positioning accuracy | X、Y | 0.025/300, 0.06/full travel | mm | |
Machine read out accuracy | X、Y | 0.005 | mm | |
Overall electrical capacity | -- | About 15 | kVA | |
Machine dimension | LXWXH | About 5215×2140×3040 | mm | |
G.W. | About 12000 | kgs | ||
