CSK8015
| Availability: | |
|---|---|
| Quantity: | |

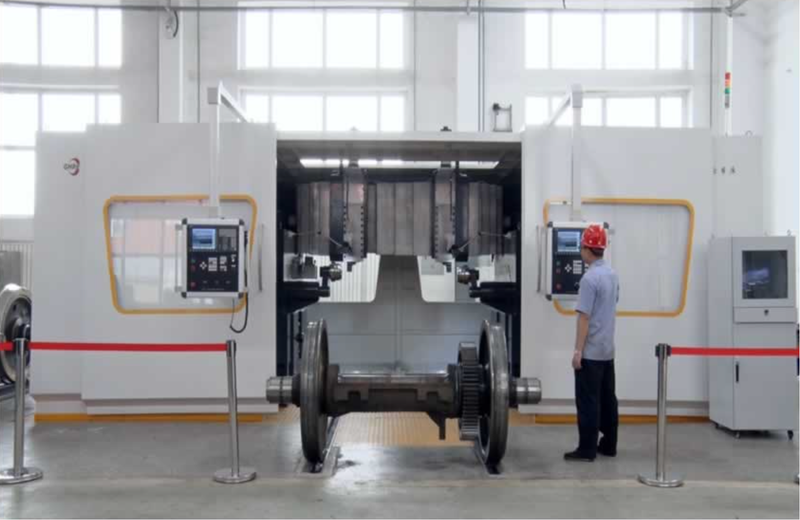

The CSK8015 CNC gantry wheel lathe is suitable for inspecting, measuring, cutting, and profiling wheel flanges, treads, and brake discs on disassembled wheelsets for various types of electric and diesel locomotives with track gauges of 1520mm and 1435mm.
Main Applications of the Machine Tool
This machine tool is designed for inspection, measurement, cutting, and profiling of wheel flanges, treads, and brake discs for various types of dismantled wheelsets on electric and diesel locomotives with track gauges of 1520mm and 1435mm.
Main features of the machine tool
1. The center of the machine tool is used for machining and profiling of various types of wheelsets. It features functions such as automatic wheel inspection and measurement, cutting and profiling, data recording and storage, data printing, fault diagnosis, chip breaking and conveying, and automatic lubrication.
2. The machine tool is controlled by a CNC system, which has the function of programming the contour shape curves of different wheel sets.
3. The machine tool uses friction rollers as the main transmission, driving the wheel tread of the friction wheel set to drive the wheel. Its characteristics are that the machine tool can quickly load and unload the wheel set, with high processing accuracy and significant efficiency. It can meet the functions of cutting, profiling, detection and measurement, data collection and collation, editing, printing, and remote management of data for wheels of various diameters and contour shapes.
4. The gantry wheel lathe is specially used for rapid cutting, profiling, detection and measurement of wheelsets and brake discs removed from railway locomotives, vehicles, and subway trains. The gantry structure allows the wheelsets to be loaded and unloaded from both sides of the machine tool, forming an assembly line operation. This structure is currently the most advanced wheel drop processing equipment at home and abroad.
The CSK8015 CNC gantry wheel lathe is suitable for inspecting, measuring, cutting, and profiling wheel flanges, treads, and brake discs on disassembled wheelsets for various types of electric and diesel locomotives with track gauges of 1520mm and 1435mm.
Main Applications of the Machine Tool
This machine tool is designed for inspection, measurement, cutting, and profiling of wheel flanges, treads, and brake discs for various types of dismantled wheelsets on electric and diesel locomotives with track gauges of 1520mm and 1435mm.
Main features of the machine tool
1. The center of the machine tool is used for machining and profiling of various types of wheelsets. It features functions such as automatic wheel inspection and measurement, cutting and profiling, data recording and storage, data printing, fault diagnosis, chip breaking and conveying, and automatic lubrication.
2. The machine tool is controlled by a CNC system, which has the function of programming the contour shape curves of different wheel sets.
3. The machine tool uses friction rollers as the main transmission, driving the wheel tread of the friction wheel set to drive the wheel. Its characteristics are that the machine tool can quickly load and unload the wheel set, with high processing accuracy and significant efficiency. It can meet the functions of cutting, profiling, detection and measurement, data collection and collation, editing, printing, and remote management of data for wheels of various diameters and contour shapes.
4. The gantry wheel lathe is specially used for rapid cutting, profiling, detection and measurement of wheelsets and brake discs removed from railway locomotives, vehicles, and subway trains. The gantry structure allows the wheelsets to be loaded and unloaded from both sides of the machine tool, forming an assembly line operation. This structure is currently the most advanced wheel drop processing equipment at home and abroad.
Item | Description | Specification |
1 | Track gauge | 1520mm and 1435mm |
2 | Wheelset diameter processing range | 680mm～1300mm |
3 | Wheelset processing width | 80mm～160mm |
4 | Maximum permissible wheelset weight | 5000Kg |
5 | Maximum cutting depth (single tool) | ≤5mm |
6 | Main drive | |
6.1 | Friction wheel main drive speed range | ≤100r/min steplessly adjustable |
6.2 | Workpiece speed range | ≤40r/min steplessly adjustable |
6.3 | Friction roller diameter | φ260mm |
6.4 | Upper friction roller bracket lifting stroke | 350mm |
6.5 | Lower friction roller bracket lifting stroke | 300mm |
6.6 | Friction roller bracket lifting speed | 16 |
7 | Feed drive | |
7.1 | Feed speed range | 0.5～2mm/r |
7.2 | Tool holder horizontal (Z direction) maximum travel | 500mm |
7.3 | Tool holder vertical (X direction) maximum travel | 300mm |
8 | Cutting chip removal device | |
8.1 | Maximum chip crusher capacity | 500kg/h |
8.2 | Conveyor conveying speed | 1200mm～1400mm/min |
9 | Electric Motor | |
9.1 | Number of main motors | 4 units |
Power | 15KW (variable frequency motor) | |
Synchronous speed | 1500r/min | |
9.2 | Number of AC servo motors | 4 units |
Rated torque | 10.5Ｎ·Ｍ | |
9.3 | Hydraulic oil pump motor quantity | 2 units |
Power | 5.5KW | |
Synchronous speed | 1000r/min | |
9.4 | Number of Top motors | 2 units |
Power | 1.5KW | |
Synchronous speed | 1500r/min | |
9.5 | Number of chip crusher motors | 1 units |
Power | 7.5KW | |
Synchronous speed | 1500r/min | |
9.6 | Number of conveyor motors | 2 units |
Power | 1.5KW | |
Synchronous speed | 1500r/min | |
10 | Machine channel coordinates | 2 sets of overlap on the left and right |
11 | Machine weight | 50T |
12 | Machine tool dimensions (length×width×height) | 8000mm×2000mm×4750mm |
