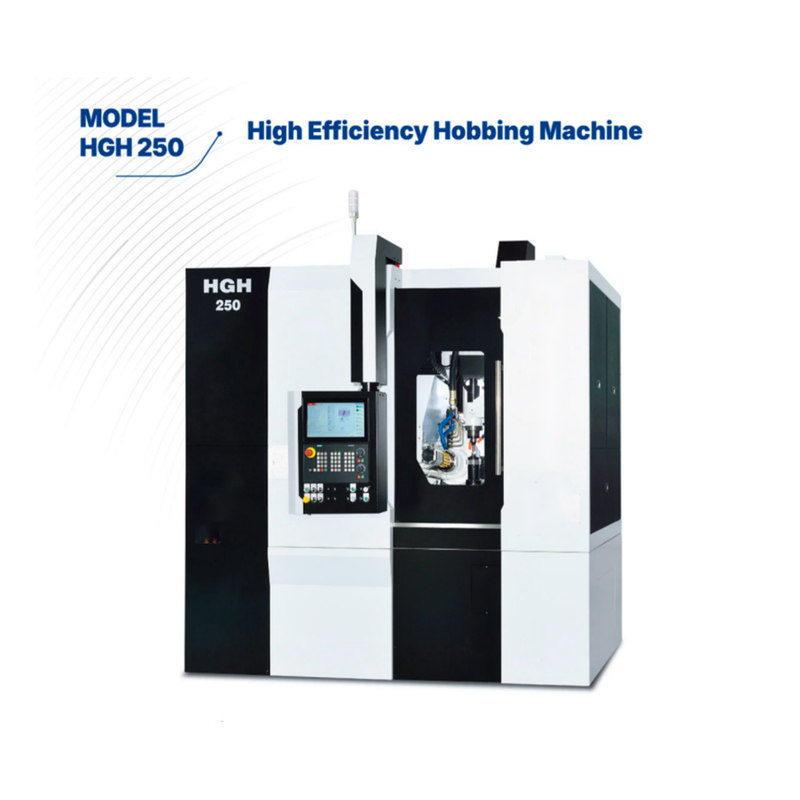

HGH250 Gear Hobbing Machine for External Gear Machining With Vertical Workpiece Axis

6 servo motor drive (B,C,X,Z,V,A)

Input Power (380V/60HZ/36KW)


Technical data:

-Nominal workpiece diameter: 250mm

-Nominal Module approx.:                                              6mm

-Min./ Max. distance between table and tailstock:                      280-680mm

-Min./Max distance between hob and work (X axis):                     25-215mm

-Axial infeed (Z axis):                                                  250mm

-Hob head swivel angle (A-axis):                                      +/-45˚

-Hob shifting (V-axis):                                               180mm

-Hob spindle (B-axis)

  Max. hob length:                                                   220mm

  Max. RPM:                                                         1500rpm

  Max. Hob O.D.:                                                      130mm

-Max. RPM of workpiece spindle (C-axis):                               300rpm


The above mentioned travel of slides and angles might need to be modified depending on the specific workpiece and tool dimensions, gear data and workpiece related equipment.
