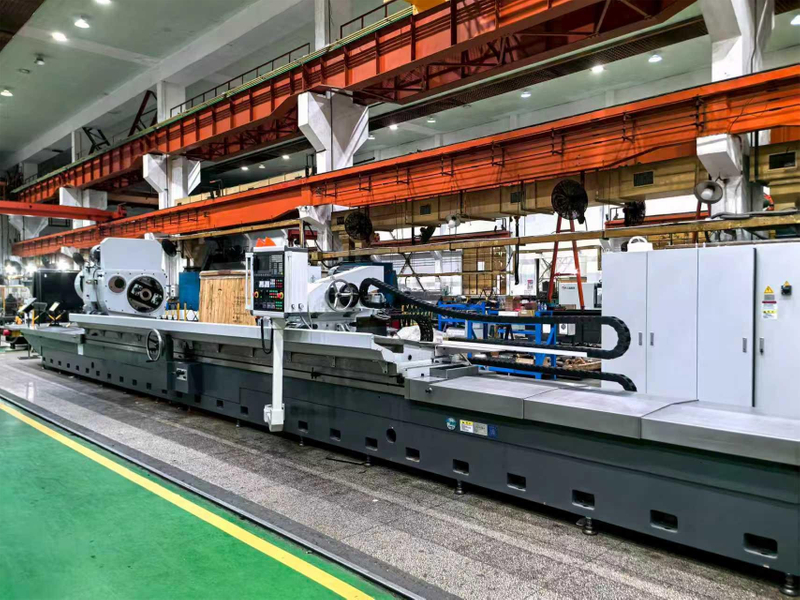

MKC1380-5000-H Cylindrical Grinder Used for Grinding Cylindrical Conical Surface Suitable for Single-piece of Batch Production

MKC1380-5000-H is mainly used for grinding cylindrical or conical surface and suitable for single-piece of batch production.

Model:
MKC1380-5000-H

Availability:

Quantity:



Inquire

Main Technical Parameter

(1) Main Specification

Machine specification	Φ800×5000 mm
Grinding diameter range	Φ80-Φ800 mm
Max. grinding length	5000 mm
Center height	430 mm
Distance between centers	5000 mm
Headstock center	#100
Tailstock center	#100
Max. workpiece weight	5000 kg

(2) Headstock & Tailstock

Spindle speed (stepless)	6～60 r/min
Center travel	100 mm

(3) Wheelhead

Wheel size	Φ900×75×Φ305 mm
Wheel speed	45 m/s
Travel speed	500～2000 mm/min

(4) Worktable

Travel speed

100～2000 mm/min

Rotation angle

Clockwise 1°

Counter-clockwise 1°

(5) Main Motor Power

Wheelhead motor	22 KW
Headstock motor	15 KW

(6) Machine Size

Length × Width × Height	12900×2750×2155 mm
Net weight	31500 kg
